A Comprehensive Guide to Die and Mold Components

Overview

In the world of manufacturing and tooling, die and mold components are the unsung heroes that ensure precision and efficiency in various industries. These components, including bushings, dowels, cooling elements, pins, and springs, play vital roles in achieving high-quality results in molding and die-casting processes. In this comprehensive guide, we will explore the diverse categories of die and mold components, their typical applications and provide product recommendations for each category. Whether you are a seasoned professional or new to this field, this guide will equip you with the knowledge needed to make informed decisions and achieve superior results in your projects.

Die & Mold Components Overview

Die and mold components are the building blocks of precision manufacturing. They are essential for creating intricate and precise parts for a wide range of industries, from automotive to aerospace. These components ensure that molds and dies function smoothly and consistently, resulting in high-quality end products. Let's dive into the various sub-categories of die and mold components and discover their significance.

Die & Mold Bushings & Dowels

Die & Mold Bushings & Dowels are fundamental components in precision tooling. They provide stability and precision in molds and dies, allowing for accurate shaping of materials.

Typical Applications

1. Injection Molding: Die & Mold Bushings are commonly used in injection molding machines to ensure precise alignment of molds, reducing the risk of defects.
2. Stamping and Forming: These components are essential for maintaining alignment and preventing wear in stamping and forming operations.
3. Die-Casting: Die & Mold Dowels play a crucial role in die-casting to ensure that the molds close and open smoothly.

Product Recommendations

For Die & Mold Bushings & Dowels, consider these product recommendations: Die & Mold Bushings & Dowels Products

Die & Mold Bushing & Dowel Accessories

Die & Mold Bushing & Dowel Accessories complement bushings and dowels, enhancing their functionality and extending their lifespan.

Typical Applications

1. Maintenance: These accessories are often used for maintenance purposes, ensuring that bushings and dowels remain in excellent condition.
2. Customization: They allow for customization of die and mold setups, adapting them to specific manufacturing needs.
3. Wear Protection: Some accessories provide wear protection, increasing the longevity of bushings and dowels.

Product Recommendations

Explore Die & Mold Bushing & Dowel Accessories here: Die & Mold Bushing & Dowel Accessories Products

Die & Mold Ejector Bushings

Die & Mold Ejector Bushings are essential for ejecting molded parts from the mold cavity with precision and efficiency.

Typical Applications

1. Plastic Injection Molding: Ejector bushings ensure that plastic parts are cleanly and accurately ejected from the mold.
2. Die-Casting: They play a similar role in die-casting processes, aiding in the removal of solidified metal parts.
3. Stamping: Ejector bushings are used in stamping dies to push the stamped part out of the die cavity.

Product Recommendations

Browse Die & Mold Ejector Bushings options here: Die & Mold Ejector Bushings Products

Die & Mold Shoulder Bushings

Die & Mold Shoulder Bushings are specialized components designed to provide accurate alignment and support within molds and dies.

Typical Applications

1. Metal Stamping: Shoulder bushings ensure precise alignment of metal sheets in stamping operations.
2. Die-Casting: They contribute to the proper alignment of die-casting molds, reducing defects.
3. Injection Molding: Shoulder bushings help maintain alignment in injection molding processes.

Product Recommendations

Discover Die & Mold Shoulder Bushing options here: Die & Mold Shoulder Bushings Products

Die & Mold Sprue Bushings

Die & Mold Sprue Bushings are crucial components in the injection molding process, guiding and supporting the sprue or runner system.

Typical Applications

1. Injection Molding: Sprue bushings guide the plastic material from the injection unit into the mold cavity.
2. Precision Molding: They are used in precision molding applications where accurate sprue alignment is critical.
3. Custom Molding: Die & Mold Sprue Bushings are employed in custom molding setups.

Product Recommendations

Explore Die & Mold Sprue Bushing options here: Die & Mold Sprue Bushings Products

Die & Mold Straight Bushings

Die & Mold Straight Bushings provide precise alignment and support for molds and dies in various manufacturing processes.

Typical Applications

1. Die-Casting: They are essential for maintaining the alignment of die-casting molds.
2. Injection Molding: Straight bushings contribute to accurate mold alignment in injection molding machines.
3. Stamping: In stamping dies, these bushings ensure the proper alignment of metal sheets.

Product Recommendations

Browse Die & Mold Straight Bushing options here: Die & Mold Straight Bushings Products

Die & Mold Tubular Dowels

Die & Mold Tubular Dowels provide precise alignment and support for molds and dies, ensuring the accuracy of the manufacturing process.

Typical Applications

1. Precision Molding: Tubular dowels are used in precision molding applications where tight tolerances are crucial.
2. Die-Casting: They play a role in die-casting processes, maintaining alignment for high-quality parts.
3. Injection Molding: Tubular dowels ensure proper alignment in injection molding machines.

Product Recommendations

Discover Die & Mold Tubular Dowel options here: Die & Mold Tubular Dowels Products

Die & Mold Cooling & Wear Protection Components

Die & Mold Cooling & Wear Protection Components are designed to maintain mold and die performance by managing heat and reducing wear.

Typical Applications

1. Heat Management: These components are crucial in applications where heat can affect mold and die performance.
2. Wear Prevention: They extend the lifespan of molds and dies by minimizing wear and tear.
3. Injection Molding: Cooling elements are commonly used in injection molding to control mold temperature.

Product Recommendations

Explore Die & Mold Cooling & Wear Protection Components here: Die & Mold Cooling & Wear Protection Components Products

Gib Assemblies & Components

Gib Assemblies & Components are essential for providing stability and precision in die and mold setups.

Typical Applications

1. Die-Casting: Gib assemblies ensure the alignment of die-casting molds, reducing defects.
2. Stamping: They play a crucial role in stamping operations by maintaining die alignment.
3. Injection Molding: Gib components contribute to the accuracy of injection molding processes.

Product Recommendations

Discover Gib Assemblies & Components here: Gib Assemblies & Components Products

Locating Rings

Locating Rings are precision components used to ensure accurate alignment and positioning of molds and dies.

Typical Applications

1. Metal Stamping: Locating rings guarantee precise alignment of metal sheets in stamping dies.
2. Injection Molding: They play a vital role in maintaining mold alignment in injection molding machines.
3. Die-Casting: Locating rings are used to ensure accurate alignment in die-casting molds.

Product Recommendations

Browse Locating Ring options here: Locating Rings Products

Wearstrip Ways

Wearstrip Ways are components designed to reduce friction and wear in die and mold setups.

Typical Applications

1. Heavy-Duty Stamping: Wearstrip ways are used in heavy-duty stamping operations to minimize wear.
2. Die-Casting: They contribute to reducing friction and prolonging the life of die-casting molds.
3. Injection Molding: In injection molding, wearstrip ways help maintain the smooth movement of molds.

Product Recommendations

Explore Wearstrip Way options here: Wearstrip Ways Products

Die & Mold Pins, Blades & Sleeves

Die & Mold Pins, Blades & Sleeves are integral components for mold ejection, cutting, and precision alignment.

Typical Applications

1. Ejection in Injection Molding: These components aid in ejecting molded parts from the mold cavity.
2. Die-Cutting: Pins, blades, and sleeves are used in die-cutting operations for precise cutting and shaping.
3. Alignment: They contribute to the accurate alignment of molds and dies in various applications.

Product Recommendations

Discover Die & Mold Pins, Blades & Sleeves options here: Die & Mold Pins, Blades & Sleeves Products

Die & Mold Ejector Blades

Die & Mold Ejector Blades are essential for ejecting molded parts from the mold cavity with precision and efficiency.

Typical Applications

1. Injection Molding: Ejector blades ensure that plastic parts are cleanly and accurately ejected from the mold.
2. Die-Casting: They play a similar role in die-casting processes, aiding in the removal of solidified metal parts.
3. Stamping: Ejector blades are used in stamping dies to push the stamped part out of the die cavity.

Product Recommendations

Browse Die & Mold Ejector Blade options here: Die & Mold Ejector Blades Products

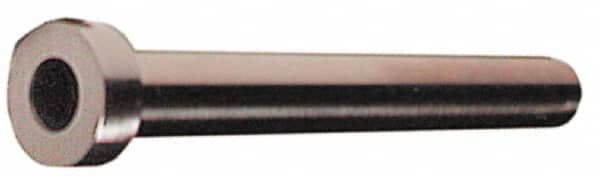

Die & Mold Ejector Sleeves

Die & Mold Ejector Sleeves are precision components used in mold ejection systems to ensure accurate part removal.

Typical Applications

1. Plastic Injection Molding: Ejector sleeves are vital for the efficient ejection of molded plastic parts.
2. Die-Casting: They play a role in die-casting processes to eject solidified metal parts.
3. Stamping: Ejector sleeves contribute to the ejection of stamped metal parts from dies.

Product Recommendations

Explore Die & Mold Ejector Sleeve options here: Die & Mold Ejector Sleeves Products

Die & Mold Leader Pins

Die & Mold Leader Pins are precision components used to ensure accurate alignment and positioning of molds and dies.

Typical Applications

1. Metal Stamping: Leader pins guarantee precise alignment of metal sheets in stamping dies.
2. Injection Molding: They play a vital role in maintaining mold alignment in injection molding machines.
3. Die-Casting: Leader pins are used to ensure accurate alignment in die-casting molds.

Product Recommendations

Discover Die & Mold Leader Pin options here: Die & Mold Leader Pins Products

Die & Mold Solid Sleeves

Die & Mold Solid Sleeves are precision components used for alignment and support in various manufacturing processes.

Typical Applications

1. Die-Casting: Solid sleeves ensure the alignment of die-casting molds, reducing defects.
2. Injection Molding: They contribute to the proper alignment of molds in injection molding machines.
3. Stamping: In stamping dies, solid sleeves ensure the correct alignment of metal sheets.

Product Recommendations

Browse Die & Mold Solid Sleeve options here: Die & Mold Solid Sleeves Products

Ejector & Core Pins

Ejector & Core Pins are essential for mold ejection and core functions in various manufacturing processes.

Typical Applications

1. Injection Molding: Ejector pins ensure that plastic parts are cleanly and accurately ejected from the mold.
2. Die-Casting: They play a similar role in die-casting processes, aiding in the removal of solidified metal parts.
3. Core Functions: Core pins are used in molds to create hollow features in parts.

Product Recommendations

Explore Ejector & Core Pin options here: Ejector & Core Pins Products

Die Springs & Accessories

Die Springs & Accessories are crucial for maintaining the functionality and performance of die and mold setups.

Typical Applications

1. Stamping and Forming: Die springs provide the necessary force for stamping and forming operations.
2. Die Ejection: They aid in ejecting parts from molds in various manufacturing processes.
3. Die & Mold Support: Springs and accessories support the weight and movement of dies and molds.

Product Recommendations

Discover Die Springs & Accessories here: Die Springs & Accessories Products

Die Springs

Die Springs are essential components for providing the necessary force in stamping and forming operations.

Typical Applications

1. Stamping: Die springs provide the force required for stamping metal sheets and forming parts.
2. Die Ejection: They are used in molds to aid in the ejection of parts in various manufacturing processes.
3. Die & Mold Support: Die springs support the weight and movement of dies and molds.

Product Recommendations

Browse Die Spring options here: Die Springs Products

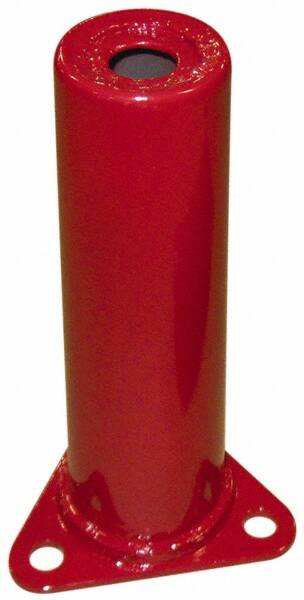

Die Spring Accessories

Die Spring Accessories complement die springs, enhancing their functionality and performance.

Typical Applications

1. Die & Mold Maintenance: Accessories are often used for maintenance purposes to keep die springs in top condition.
2. Customization: They allow for customization of die setups, adapting them to specific manufacturing needs.
3. Die & Mold Support: Accessories provide additional support for dies and molds.

Product Recommendations

Explore Die Spring Accessories here: Die Spring Accessories Products

Die & Mold Retainers

Die & Mold Retainers are crucial components for securely holding molds and dies in place during manufacturing.

Typical Applications

1. Die & Mold Stability: Retainers ensure the stable positioning of molds and dies during operations.
2. Stamping: They are used in stamping dies to secure and align metal sheets for precision forming.
3. Die-Casting: Retainers play a role in die-casting setups to prevent misalignment.

Product Recommendations

Discover Die & Mold Retainer options here: Die & Mold Retainers Products

Die & Mold Accessories

Die & Mold Accessories encompass a wide range of components that enhance the functionality of molds and dies.

Typical Applications

1. Customization: Accessories allow for the customization of die setups to meet specific manufacturing requirements.
2. Die & Mold Maintenance: They are often used for maintenance purposes to keep molds and dies in optimal condition.
3. Precision Manufacturing: Many accessories contribute to precision and quality in manufacturing processes.

Product Recommendations

Discover Die & Mold Accessories options here: Die & Mold Accessories Products

Conclusion

Die and mold components are the backbone of precision manufacturing, ensuring that molds and dies perform flawlessly to create high-quality products. From bushings and dowels to cooling elements and alignment tools, each component plays a vital role in achieving superior results in various industries. Whether you are involved in injection molding, die-casting, stamping, or any other manufacturing process, selecting the right die and mold components is essential for success. With the diverse range of products available in the market, you can tailor your setups to meet specific requirements and maintain the highest standards of quality and precision.

If you have any questions or need further assistance in choosing the right die and mold components for your projects, feel free to reach out. We're here to help you achieve excellence in your manufacturing endeavors.
