Underground Utility Locator Kit, UAT-620 Series, 20 ft Depth, Direct/Inductive, CAT IV 600V MPN:UAT-620
Free Shipping
In Stock
The Amprobe UAT-620 Series underground utility locator kit helps prevent costly utility strikes and safety hazards by accurately locating buried metallic utilities and services up to 100 feet deep, with depth measurement capability up to 20 feet. This rugged kit includes a transmitter, receiver, test lead kit, batteries, and a protective mobile duffle bag for convenient transport and jobsite durability. It's ideal for utility companies, excavation contractors, and construction firms to locate pipes, energized cables, and de-energized cables, reducing project delays and ensuring a safe working environment.
Top product features:
- Locates underground metallic utilities, including pipes, energized cables, and de-energized cables, up to 100 feet deep.
- Provides accurate depth measurement of buried utilities up to 20 feet.
- Offers direct connection with test leads for tracing individual cables or pipes.
Top product applications:
- Locating buried metallic utilities and services up to 100 feet deep, including pipes, energized cables, and de-energized cables.
- Detecting energized 50/60 Hz lines without requiring a transmitter in Passive Power mode.
- Tracing underground utilities without a transmitter in Passive Radio mode using surrounding RF signals.
The Amprobe UAT-600 Series underground utility locator helps prevent costly utility strikes, project delays, and safety hazards by accurately locating buried metallic utilities and services up to 100 feet deep, with depth measurement capability up to 20 feet. Built for rugged field use, these complete locating kits include a transmitter, receiver, test lead kit, batteries, extra fuses, and a protective mobile duffle bag for convenient transport and jobsite durability. The UAT-620 kit also includes a signal clamp for safe signal application when direct electrical connection is not possible, while the optional AF-600 A-Frame expands the system for ground fault locating applications.
Key Features:
- - Locates underground metallic utilities, including pipes, energized cables, and de-energized cables, up to 100 feet deep.
- - Provides accurate depth measurement of buried utilities up to 20 feet.
- - Passive Power mode detects energized 50/60 Hz lines without requiring a transmitter.
- - Passive Radio mode uses surrounding RF signals to trace underground utilities without a transmitter.

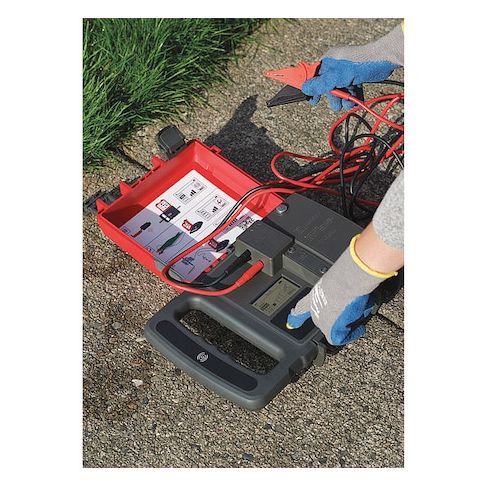

- - Active locating with the UAT-600-T Transmitter supports induction, direct connection with test leads, and clamp-based signal application.
- - Induction mode allows tracing individual cables when there is no direct access for leads or a clamp.
- - Direct connection with test leads offers a reliable method for tracing individual cables or pipes.
- - Signal clamp, included with the UAT-620 kit and optional for the UAT-610 kit, enables safe signal transmission when direct contact is not possible.
- - Offers 2 frequency options, 8 kHz and 33 kHz, for application flexibility.
- - Can trace non-metallic pipes and conduits when used with inserted metal fish tape or cable.
- - Measures depth, current, voltage, resistance, and output current for expanded diagnostic capability.
- - Supports advanced two-person locating applications.
- - Compatible with the optional AF-600 A-Frame accessory for ground fault locating.
- - Complete kit includes transmitter, receiver, test lead kit, batteries, additional fuses, and a protective duffle bag.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.60
- Package Width: 11.40
- Package Height: 34.40
- Package Weight: 31.80
