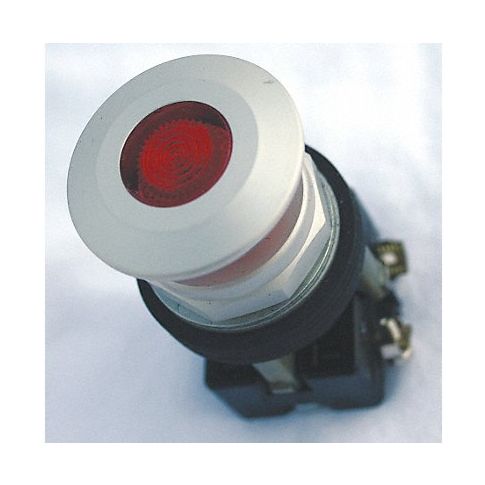

H6949 Illuminated Push Button 30mm 1NO/1NC Red

H6949 Illuminated Push Button 30mm 1NO/1NC Red
Currently Unavailable
Brand: Eaton
UPC: 786685222813
30mm Illuminated Push Buttons, HT800 Series
Round shape
Rated NEMA 3, 3R, 4, 4X, 12, and 13. Anodized aluminum mounting rings.
UL Listed and CSA Certified.

Technical Specifications

  • Item Illuminated Push Button
  • Size 30 mm
  • Action Maintained Pull / Maintained Push
  • Type of Operator 41mm Mushroom Head
  • Basic Material Metal
  • Head Material Plastic
  • Contact Form 1NO/1NC
  • Bezel Anodized Aluminum/Mounting Rings
  • Color Red
  • Lamp Module Voltage 24V AC/DC
  • Lamp Module Type Full Voltage
  • Lamp Type LED
  • Lamp Voltage 24V AC/DC
  • Replacement Lamp Mfr. No. HT8LEDRF3
  • Contact Rating 10A @ 600V AC/DC
  • NEMA Contact Rating Designation A600/P600
  • Number of Operators 1
  • NEMA Rating 12, 13, 3, 3R, 4, 4X
  • IP Rating 65
  • Standards CSA, UL
  • Terminal Connection Finger Safe Pressure Plate

Manufacturer Details

  • Manufacturer: Eaton
  • Condensed Mfg Number: HT8FBRABFL3P

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • TAA Compliant: Y
  • Country of Origin: DO
  • CA Prop 65 Wht Label: N

Shipping Details

  • Ship Weight: 0.49

Classification Details

  • GDS Category Name: Illuminated Push Buttons with Contact Blocks
  • GDS Family Name: Push Buttons
  • GDS Segment Name: Electrical
  • UNSPSC: 39121512
  • UNSPSC Class ID: 15
  • UNSPSC Commodity Name: Switches and controls and relays and accessories
  • UNSPSC Commodity ID: 12
  • UNSPSC Commodity Name: Push button switches
  • UNSPSC Family ID: 12
  • UNSPSC Family Name: Electrical equipment and components and supplies
  • UNSPSC Segment ID: Electrical Systems and Lighting and Components and Accessories and Supplies
  • UNSPSC Segment Name: ms and Lighting and Components and Accessories and Supplies

Shipping Details

  • Not For Sale In: HI AK PR
More Information
GTIN 786685222813
Manufacturer Part Number HT8FBRABFL3P
Condition New
