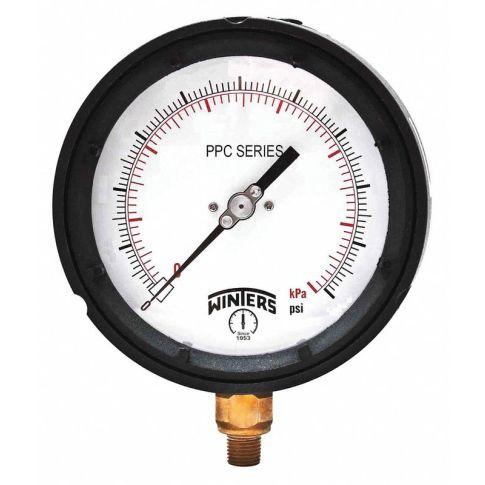

Gauge 4-1/2 Dial Size MNPT Connection MPN:PPC5121WBG
SKU
226-cxo-489h86
Gauge 4-1/2 Dial Size MNPT Connection
The Gauge 4-1/2 Dial Size MNPT Connection is an essential test instrument for industries that require precise pressure measurements, with customizable options for pressure range and connections to various pipes and fittings. Its durable construction ensures reliable performance in high-pressure environments, making it ideal for hydraulic systems, pneumatic systems, chemical plants, automotive applications, manufacturing plants, oil & gas industries, and research labs.
Buy Winters item #PPC5121WBG to have a positive impact 📈 on our community of Service Disabled Veteran-Owned Business partners.
Technical Specifications
- Item Compound Gauge
- Gauge Application Process
- Gauge Nominal Dial Size 4 1/2 in
- Basic Gauge Case Material Plastic
- Basic Gauge Wetted Parts Brass
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Bottom
- Gauge Primary Range Values -30 to 0 to 30
- Gauge Accuracy +/-0.50%
- Pressure and Vacuum Gauge Type Compound Gauge
- Gauge Panel Mountable No
- Liquid Filled No
- Gauge Case Material Phenolic
- Gauge Case Color Black
- Basic Gauge Socket Material Brass
- Gauge Socket Material Brass
- Basic Gauge Sensor Material Brass
- Gauge Sensor Material Brass
- Gauge Lens Material Polycarbonate
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -40 Degrees to 250 Degrees F
- Gauge Special Options IP65 Protection Rating
- Characteristics Field Liquid Fillable, Micrometer Adjustable Pointer, Under/Overload Stops
- For Use With Chemical, Petroleum and Power Industries, Non-Clogging Corrosive Media
- Calibration Certificate Included No
- Series PPC
- Includes Glow-In-The-Dark White Dial, Micrometer Adjustable Pointer, Solid Front Case
- Manufacturers Warranty Length 5 yr
Manufacturer Details
- Manufacturer: Winters
- Condensed Mfg Number: PPC5121WBG
- MPN: PPC5121WBG
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 23151820
- UNSPSC Class ID: 18
- UNSPSC Commodity Name: Pharmaceutical industry machinery and equipment and supplies
- UNSPSC Commodity ID: 20
- UNSPSC Commodity Name: Pressure gauge
- UNSPSC Family ID: 15
- UNSPSC Family Name: Industrial process machinery and equipment and supplies
- UNSPSC Segment ID: 23
- UNSPSC Segment Name: Industrial Manufacturing and Processing Machinery and Accessories
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:36am UTC
Category: Pressure and Vacuum Measuring
