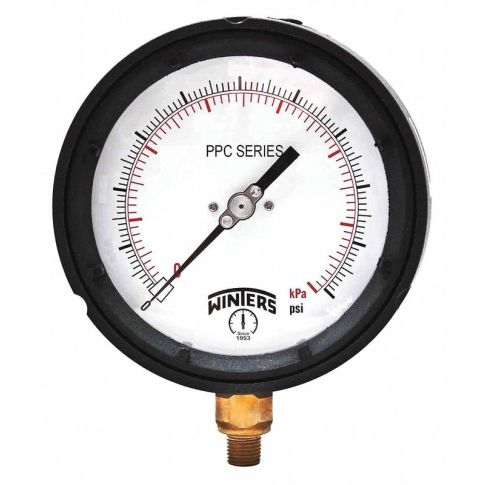

Gauge 4-1/2 Dial Size MNPT Connection MPN:PPC5089WBYG
The Gauge 4-1/2 Dial Size MNPT Connection is an essential precision pressure measurement tool for professionals across multiple industries, including hydraulic systems, research laboratories, medical equipment manufacturing, aerospace applications, and industrial processes. With its customizable options for pressure range and connections to various pipes and fittings, the gauge ensures versatility in its applications while ensuring easy readability with its large dial size of 4-1/2 inches. Its durability makes it an ideal tool for industries that require precise measurements, making it a valuable asset for professionals who need precision pressure measurements. With its indispensable presence in Commercial Industrial and Process Dial Pressure G, the gauge is ideal for use in Pressure and Vacuum Measuring, ensuring accurate and reliable results.
Technical Specifications
- Item Pressure Gauge
- Gauge Application Process
- Gauge Nominal Dial Size 4 1/2 in
- Basic Gauge Case Material Plastic
- Basic Gauge Wetted Parts Brass
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Bottom
- Gauge Primary Range Values 0 to 600
- Gauge Accuracy +/-0.50%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable No
- Liquid Filled No
- Gauge Case Material Phenolic
- Gauge Case Color Black
- Basic Gauge Socket Material Brass
- Gauge Socket Material Brass
- Basic Gauge Sensor Material Brass
- Gauge Sensor Material Brass
- Gauge Lens Material Polycarbonate
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -40 Degrees to 250 Degrees F
- Gauge Special Options IP65 Protection Rating
- Characteristics Field Liquid Fillable, Micrometer Adjustable Pointer, Under/Overload Stops
- For Use With Chemical, Petroleum and Power Industries, Non-Clogging Corrosive Media
- Calibration Certificate Included No
- Series PPC
- Includes Micrometer Adjustable Pointer, Reflective Fluorescent Yellow-Green Dial, Solid Front Case
- Manufacturers Warranty Length 5 yr
Manufacturer Details
- Manufacturer: Winters
- Condensed Mfg Number: PPC5089WBYG
- MPN: PPC5089WBYG
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 23151820
- UNSPSC Class ID: 18
- UNSPSC Commodity Name: Pharmaceutical industry machinery and equipment and supplies
- UNSPSC Commodity ID: 20
- UNSPSC Commodity Name: Pressure gauge
- UNSPSC Family ID: 15
- UNSPSC Family Name: Industrial process machinery and equipment and supplies
- UNSPSC Segment ID: 23
- UNSPSC Segment Name: Industrial Manufacturing and Processing Machinery and Accessories
Shipping Details
- Not For Sale In: HI AK PR
