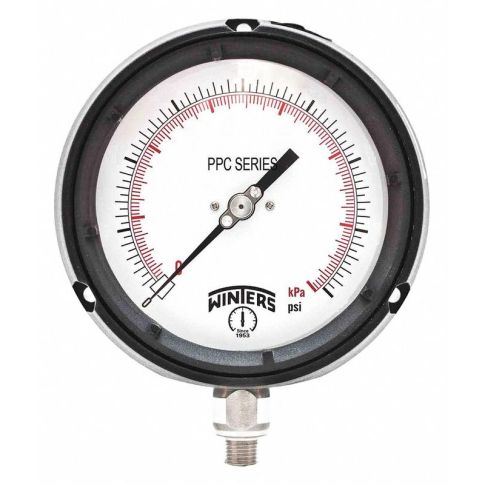

Gauge 4-1/2 Dial Size MNPT Connection MPN:PPC5040R1WBY
The Gauge 4-1/2 Dial Size MNPT Connection is a precise pressure measurement tool designed to meet the needs of professionals working in various industries. This gauge offers customizable options for pressure range and connections to different pipes and fittings, ensuring versatility and convenience across multiple applications. Its durable design allows it to withstand demanding environments while providing accurate readings essential for users in hydraulic systems, research laboratories, medical equipment manufacturing, aerospace applications, and industrial processes. The Gauge 4-1/2 Dial Size MNPT Connection is ideal for customers who require high precision and accuracy in their pressure measurements, making it an excellent choice for test instruments and pressure and vacuum measuring fields.
Technical Specifications
- Item Vacuum Gauge
- Gauge Application Process
- Gauge Nominal Dial Size 4 1/2 in
- Basic Gauge Case Material Plastic
- Basic Gauge Wetted Parts Stainless Steel
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Bottom
- Gauge Primary Range Values -30 to 0
- Gauge Accuracy +/-0.50%
- Pressure and Vacuum Gauge Type Vacuum Gauge
- Gauge Panel Mountable No
- Liquid Filled No
- Gauge Case Material Phenolic
- Gauge Case Color Black
- Basic Gauge Socket Material Stainless Steel
- Gauge Socket Material Stainless Steel
- Basic Gauge Sensor Material Stainless Steel
- Gauge Sensor Material Stainless Steel
- Gauge Lens Material Polycarbonate
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -40 Degrees to 250 Degrees F
- Gauge Special Options IP65 Protection Rating
- Characteristics Field Liquid Fillable, Micrometer Adjustable Pointer, Under/Overload Stops
- For Use With Chemical, Petroleum and Power Industries, Non-Clogging Corrosive Media
- Calibration Certificate Included No
- Series PPC
- Includes Micrometer Adjustable Pointer, Reflective Fluorescent Yellow Dial, Solid Front Case
- Manufacturers Warranty Length 5 yr
Manufacturer Details
- Manufacturer: Winters
- Condensed Mfg Number: PPC5040R1WBY
- MPN: PPC5040R1WBY
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112406
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Vacuum gauges
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
