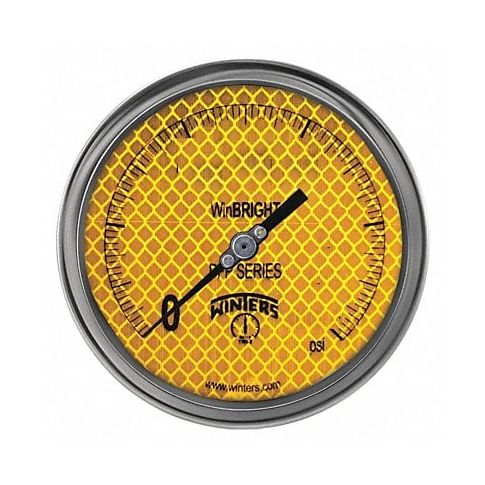

Gauge 6 Dial Size MNPT Connection MPN:PFP1063WBYG

Technical Specifications

• Item Pressure Gauge
• Gauge Application General Purpose
• Gauge Nominal Dial Size 6 in
• Basic Gauge Case Material Stainless Steel
• Basic Gauge Wetted Parts Stainless Steel
• Gauge Connection Type MNPT
• Gauge Connection Size 1/4 in
• Gauge Connection Location Bottom
• Gauge Primary Range Values 0 to 160
• Gauge Accuracy +/-1.00%
• Pressure and Vacuum Gauge Type Pressure Gauge
• Gauge Panel Mountable No
• Liquid Filled Yes
• Gauge Case Material 304 Stainless Steel
• Gauge Case Color Gray
• Basic Gauge Socket Material Stainless Steel
• Gauge Socket Material Stainless Steel
• Basic Gauge Sensor Material Stainless Steel
• Gauge Sensor Material Stainless Steel
• Gauge Lens Material Polycarbonate
• Gauge Filled With Glycerin
• Basic Gauge Lens Material Plastic
• Operating Temp. Range -4 Degrees to 150 Degrees F
• Gauge Special Options Heavy Duty
• Characteristics Protects Against Vibration and Pulsation
• For Use With Compressors, Hydraulic and Oil Field Equipment, Process Industries, Pumps
• Calibration Certificate Included No
• Series PFP
• Includes Bayonet Ring, Liquid Filled Case, Reflective Fluorescent Yellow-Green Dial, Restrictor Screw
• Manufacturers Warranty Length 5 yr

Manufacturer Details

• Manufacturer: Winters
• Condensed Mfg Number: PFP1063WBYG
• MPN: PFP1063WBYG

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9026208000
• GDS Category Name: Commercial Industrial and Process Dial Pressure G
• GDS Family Name: Pressure and Vacuum Measuring
• GDS Segment Name: Test Instruments
• UNSPSC: 23151820
• UNSPSC Class ID: 18
• UNSPSC Commodity Name: Pharmaceutical industry machinery and equipment and supplies
• UNSPSC Commodity ID: 20
• UNSPSC Commodity Name: Pressure gauge
• UNSPSC Family ID: 15
• UNSPSC Family Name: Industrial process machinery and equipment and supplies
• UNSPSC Segment ID: 23
• UNSPSC Segment Name: Industrial Manufacturing and Processing Machinery and Accessories

Shipping Details

• Not For Sale In: HI AK PR
