K4541 Pressure Gauge 2-1/2 Dial Size Silver MPN:PFQ907-DRY-25FF
SKU
226-CXO-491F89

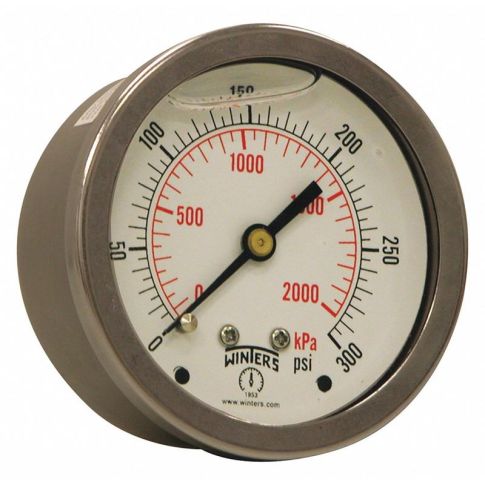

K4541 Pressure Gauge 2-1/2 Dial Size Silver
The pressure gauge provides accurate readings within -30Hg to 3000psi (0 to 207 bar) range owing to its large dial size of 2-1/2 inches, making it ideal for commercial industrial and process dial pressure g measurements across industries. Constructed from stainless steel, the gauge guarantees durability while ensuring ease of use even in harsh environments. Additionally, the pressure gauge offers cost-effectiveness over time owing to its minimal maintenance requirements, resulting from an easy cleaning property that preserves accuracy throughout long usage periods.
Buy Winters item #PFQ907-DRY-25FF to have a positive impact 📈 on our community of Service Disabled Veteran-Owned Business partners.
Technical Specifications
- Item Pressure Gauge
- Gauge Application General Purpose
- Gauge Nominal Dial Size 2 1/2 in
- Basic Gauge Case Material Metal
- Basic Gauge Wetted Parts Brass
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Center Back
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 300
- Gauge Secondary Range Units kPa
- Gauge Secondary Range Values 0 to 2100
- Gauge Accuracy +/-1.50%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable Yes
- Gauge Mounting Method Front Flange
- Liquid Filled No
- Gauge Primary Range Smallest Graduation 10/100
- Gauge Case Material 304 Stainless Steel
- Gauge Primary Range Numbered Graduations 50/500
- Gauge Case Color Stainless Steel
- Basic Gauge Socket Material Brass
- Gauge Socket Material Brass
- Basic Gauge Sensor Material Brass
- Gauge Sensor Material Brass
- Gauge Lens Material Polycarbonate
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -40 Degrees to 200 Degrees F
- Gauge Special Options Heavy Duty
- For Use With Media Compatible with Bronze
- Calibration Certificate Included No
- Series PFQ
- Manufacturers Warranty Length 5 yr
- Features Ring Terminal
Manufacturer Details
- Manufacturer: Winters
- Condensed Mfg Number: PFQ907DRY25FF
- MPN: PFQ907-DRY-25FF
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B0087UJ0LK, B00BJ6DIKS, B0087V0H2U
Product info last updated on September 26, 2024 1:02pm UTC Category: Pressure and Vacuum Measuring
