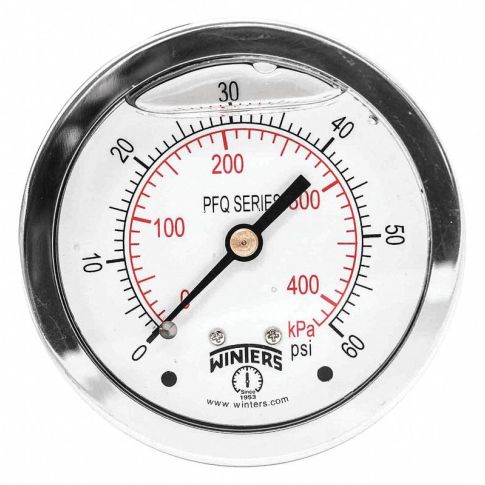

K4541 Pressure Gauge 2-1/2 Dial Size Silver MPN:PFQ903-DRY-25FF
The K4541 Pressure Gauge 2-1/2 Dial Size Silver is an essential tool for precise measurement of pressure in various industrial settings such as pneumatics, hydraulics, and mechanical systems. It offers accuracy from -30Hg to 3000psi (0 to 207 bar) with a temperature range of -40F to 250F (-40C to 121C), ensuring reliable readings in extreme conditions. Stainless steel construction makes it durable and suitable for use even under harsh environments. With its large dial size and easy-to-read numerals, this pressure gauge allows visibility from distances as far as six feet, preventing any accidents due to inaccurate or unclear readings. Its versatility across multiple industries and precision measurement capabilities make it an ideal addition to any professional's equipment toolkit, making it perfect for engineers, technicians, scientists, and researchers who require accurate pressure measurements in their work.
Technical Specifications
- Item Pressure Gauge
- Gauge Application General Purpose
- Gauge Nominal Dial Size 2 1/2 in
- Basic Gauge Case Material Metal
- Basic Gauge Wetted Parts Brass
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Center Back
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 60
- Gauge Secondary Range Units kPa
- Gauge Secondary Range Values 0 to 410
- Gauge Accuracy +/-1.50%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable Yes
- Gauge Mounting Method Front Flange
- Liquid Filled No
- Gauge Primary Range Smallest Graduation 5/50
- Gauge Case Material 304 Stainless Steel
- Gauge Primary Range Numbered Graduations 10/100
- Gauge Case Color Stainless Steel
- Basic Gauge Socket Material Brass
- Gauge Socket Material Brass
- Basic Gauge Sensor Material Brass
- Gauge Sensor Material Brass
- Gauge Lens Material Polycarbonate
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -40 Degrees to 200 Degrees F
- Gauge Special Options Heavy Duty
- For Use With Media Compatible with Bronze
- Calibration Certificate Included No
- Series PFQ
- Manufacturers Warranty Length 5 yr
- Features Ring Terminal
Manufacturer Details
- Manufacturer: Winters
- Condensed Mfg Number: PFQ903DRY25FF
- MPN: PFQ903-DRY-25FF
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
