K4540 Pressure Gauge 2 Dial Size Silver MPN:PFQ2488-DRY-2FF
SKU
226-CXO-491F76

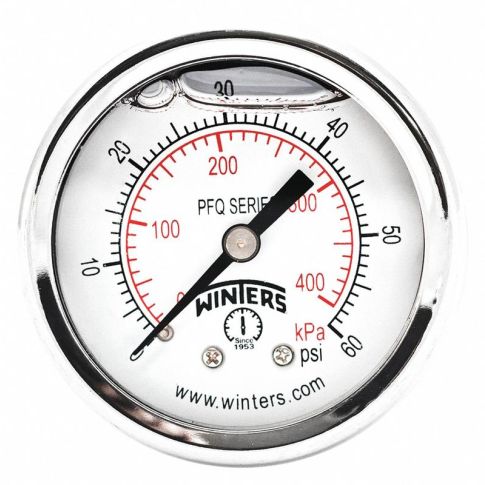

K4540 Pressure Gauge 2 Dial Size Silver
K4540 Pressure Gauge 2 Dial Size Silver is a versatile instrument with numerous benefits for professionals requiring precision pressure measurements across HVAC, laboratories, manufacturing, and refrigeration/air compressor applications. Its dual scale display facilitates easy conversion between PSI and bar units while ensuring accurate results regardless of the measurement system used by the user. With its stainless steel construction and protective bezel guard, durability is ensured for this gauge to withstand harsh conditions. Due to these advantages, professionals in diverse industries value K4540 Pressure Gauge 2 Dial Size Silver as an indispensable tool for accurate pressure measurements.
Get Winters item #PFQ2488-DRY-2FF from our selection of Measuring Tools & Sensors while supporting Veterans 🎖.
Technical Specifications
- Item Pressure Gauge
- Gauge Application General Purpose
- Gauge Nominal Dial Size 2 in
- Basic Gauge Case Material Metal
- Basic Gauge Wetted Parts Brass
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Center Back
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 60
- Gauge Secondary Range Units kPa
- Gauge Secondary Range Values 0 to 410
- Gauge Accuracy +/-2.50%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable Yes
- Gauge Mounting Method Front Flange
- Liquid Filled No
- Gauge Primary Range Smallest Graduation 5/50
- Gauge Case Material 304 Stainless Steel
- Gauge Primary Range Numbered Graduations 10/100
- Gauge Case Color Stainless Steel
- Basic Gauge Socket Material Brass
- Gauge Socket Material Brass
- Basic Gauge Sensor Material Brass
- Gauge Sensor Material Brass
- Gauge Lens Material Acrylic
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -40 Degrees to 200 Degrees F
- Gauge Special Options Heavy Duty
- For Use With Media Compatible with Bronze
- Calibration Certificate Included No
- Series PFQ
- Manufacturers Warranty Length 5 yr
- Features Ring Terminal
Manufacturer Details
- Manufacturer: Winters
- Condensed Mfg Number: PFQ2488DRY2FF
- MPN: PFQ2488-DRY-2FF
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on September 26, 2024 1:02pm UTC
Category: Pressure and Vacuum Measuring
