Pressure Gauge 4 Dial Size Silver MPN:PFQ1556-DRY
SKU
226-CXO-491F69

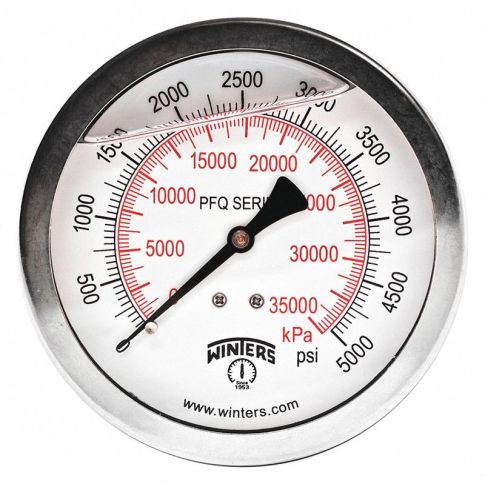

Pressure Gauge 4 Dial Size Silver
This high-quality pressure gauge offers precision measurements in a variety of pressure ranges, making it suitable for HVAC systems, automotive repairs, chemical processes and more. Its easy-to-read black face markings on a white background enable users to read the current pressure accurately. Its versatile nature and durable construction make this gauge an essential tool in numerous industrial settings.
Buy Winters item #PFQ1556-DRY to have a positive impact 📈 on our community of Service Disabled Veteran-Owned Business partners.
Technical Specifications
- Item Pressure Gauge
- Gauge Application General Purpose
- Gauge Nominal Dial Size 4 in
- Basic Gauge Case Material Metal
- Basic Gauge Wetted Parts Stainless Steel
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Center Back
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 5000
- Gauge Secondary Range Units kPa
- Gauge Secondary Range Values 0 to 35,000
- Gauge Accuracy +/-1.50%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable No
- Liquid Filled No
- Gauge Primary Range Smallest Graduation 500/5000
- Gauge Case Material 304 Stainless Steel
- Gauge Primary Range Numbered Graduations 1000/10000
- Gauge Case Color Stainless Steel
- Basic Gauge Socket Material Stainless Steel
- Gauge Socket Material 316 Stainless Steel
- Basic Gauge Sensor Material Stainless Steel
- Gauge Sensor Material Stainless Steel
- Gauge Lens Material Polycarbonate
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -40 Degrees to 200 Degrees F
- Gauge Special Options Heavy Duty
- For Use With Media Compatible with 316L Stainless Steel
- Calibration Certificate Included No
- Series PFQ
- Manufacturers Warranty Length 5 yr
- Features Ring Terminal
Manufacturer Details
- Manufacturer: Winters
- Condensed Mfg Number: PFQ1556DRY
- MPN: PFQ1556-DRY
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:44am UTC
Category: Pressure and Vacuum Measuring
