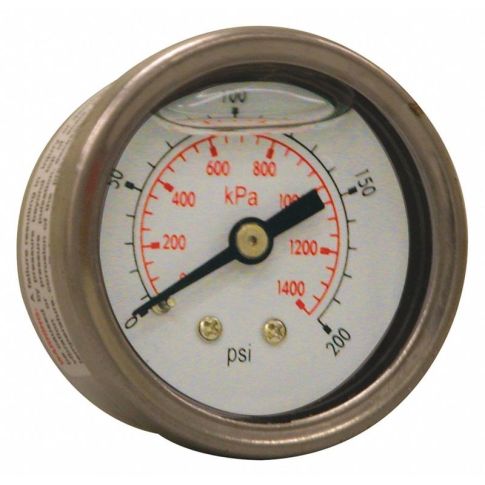

Pressure Gauge 1-1/2 Dial Size Silver MPN:PFQ1226
The Pressure Gauge is an essential tool used to measure pressure accurately with a dial size of 1-1/2 inches and features outstanding visibility for easy reading even in harsh environments. Its robust construction ensures reliability, while its suitability makes it ideal for industries such as HVAC or hydraulics where precise measurements are crucial and versatility adds to its applications' breadth. Moreover, the gauge is suited for industries like pharmaceutical, chemical or food processing with its precision pressure measurement features being utilized across a wide range of specifications regardless of industry needs. Its ease of installation makes it an indispensable tool for professionals, highlighting the Pressure Gauge's importance in maintaining pressure control systems safely and efficiently across diverse industries with precision pressure measurements demanded.
Technical Specifications
- Item Pressure Gauge
- Gauge Application General Purpose
- Gauge Nominal Dial Size 1 1/2 in
- Basic Gauge Case Material Metal
- Basic Gauge Wetted Parts Stainless Steel
- Gauge Connection Type MNPT
- Gauge Connection Size 1/8 in
- Gauge Connection Location Center Back
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 200
- Gauge Secondary Range Units kPa
- Gauge Secondary Range Values 0 to 1380
- Gauge Accuracy +/-2.50%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable No
- Liquid Filled Yes
- Gauge Primary Range Smallest Graduation 10/100
- Gauge Case Material 304 Stainless Steel
- Gauge Primary Range Numbered Graduations 50/200
- Gauge Case Color Stainless Steel
- Basic Gauge Socket Material Stainless Steel
- Gauge Socket Material 316 Stainless Steel
- Basic Gauge Sensor Material Stainless Steel
- Gauge Sensor Material Stainless Steel
- Gauge Lens Material Acrylic
- Gauge Filled With Glycerin
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -4 Degrees to 150 Degrees F
- Gauge Special Options Heavy Duty
- For Use With Media Compatible with 316L Stainless Steel
- Calibration Certificate Included No
- Series PFQ
- Manufacturers Warranty Length 5 yr
- Features Ring Terminal
Manufacturer Details
- Manufacturer: Winters
- Condensed Mfg Number: PFQ1226
- MPN: PFQ1226
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
