Vacuum Gauge 1-1/2 Dial Size Silver MPN:PFQ1220
SKU
226-CXO-491D76

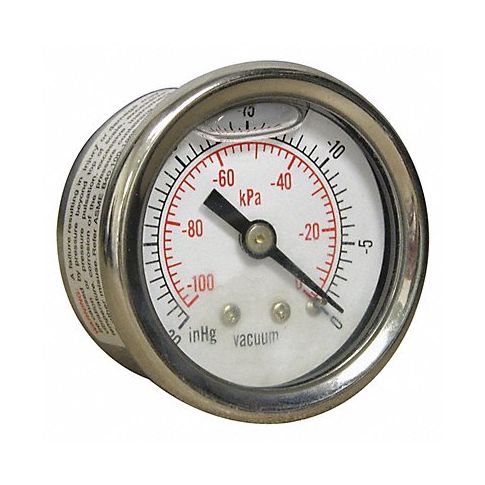

Vacuum Gauge 1-1/2 Dial Size Silver
The Vacuum Gauge with a dial size measuring at 1.5 inches featuring a silver color design helps measure the vacuum pressure ensuring accuracy while maintaining ease of reading within various industries that utilize such measurements like aerospace, manufacturing or scientific research allowing professionals to make calculated decisions leading to higher efficiency levels hence contributing towards increased profitability while preventing possible losses due to human error resulting from incorrect readings.
Buy Winters item #PFQ1220 from our huge selection of Measuring Tools & Sensors to show your support for our 🗽 Patriotic Veteran-Owned Business.
Technical Specifications
- Item Vacuum Gauge
- Gauge Application General Purpose
- Gauge Nominal Dial Size 1 1/2 in
- Basic Gauge Case Material Metal
- Basic Gauge Wetted Parts Stainless Steel
- Gauge Connection Type MNPT
- Gauge Connection Size 1/8 in
- Gauge Connection Location Center Back
- Gauge Primary Range Units in Hg
- Gauge Primary Range Values -30 to 0
- Gauge Secondary Range Units kPa
- Gauge Secondary Range Values -100 to 0
- Gauge Accuracy +/-2.50%
- Pressure and Vacuum Gauge Type Vacuum Gauge
- Gauge Panel Mountable No
- Liquid Filled Yes
- Gauge Primary Range Smallest Graduation 1/10
- Gauge Case Material 304 Stainless Steel
- Gauge Primary Range Numbered Graduations 5/20
- Gauge Case Color Stainless Steel
- Basic Gauge Socket Material Stainless Steel
- Gauge Socket Material 316 Stainless Steel
- Basic Gauge Sensor Material Stainless Steel
- Gauge Sensor Material Stainless Steel
- Gauge Lens Material Acrylic
- Gauge Filled With Glycerin
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -4 Degrees to 150 Degrees F
- Gauge Special Options Heavy Duty
- For Use With Media Compatible with 316L Stainless Steel
- Calibration Certificate Included No
- Series PFQ
- Manufacturers Warranty Length 5 yr
- Features Ring Terminal
Manufacturer Details
- Manufacturer: Winters
- Condensed Mfg Number: PFQ1220
- MPN: PFQ1220
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112406
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Vacuum gauges
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on September 26, 2024 1:02pm UTC
Category: Pressure and Vacuum Measuring
