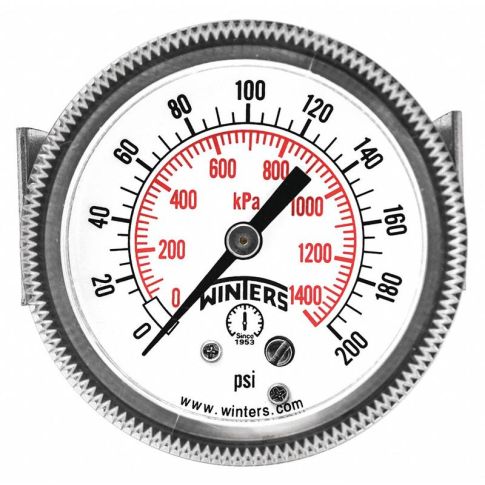

K4522 Pressure Gauge 2 Dial Size Black MPN:P9U901410UC
The K4522 pressure gauge is a sturdy tool designed for precise process control with its two dials, offering high contrast indicators making it easy to read even under low light conditions. Its durable stainless steel construction ensures increased safety during measurements while the wide range of 0-15psi or 0-7 bar G makes it suitable for use in various applications such as hydraulic systems, pneumatic circuits, air compressors, steam boilers and automotive or agricultural equipment. The K4522's versatility, reliability and precision make it a top choice among professionals in commercial industrial and process dial pressure gauges across industries with safety as their priority-from control rooms to field locations- making it an indispensable tool in precise process control. Its compact design makes it easy to store and transport while its stainless steel construction ensures durability for everyday use. Overall, the K4522 offers users increased safety, precision and reliability that are essential for accurate pressure measurements across numerous industrial applications, making it a must-have tool in process control systems.
Technical Specifications
- Item Pressure Gauge
- Gauge Application General Purpose
- Gauge Nominal Dial Size 2 in
- Basic Gauge Case Material Metal
- Basic Gauge Wetted Parts Brass
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Center Back
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 200
- Gauge Secondary Range Units kPa
- Gauge Secondary Range Values 0 to 1380
- Gauge Accuracy +/-2-1-2%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable Yes
- Gauge Mounting Method U Clamp
- Liquid Filled No
- Gauge Primary Range Smallest Graduation 10/100
- Gauge Case Material Steel
- Gauge Primary Range Numbered Graduations 50/200
- Gauge Case Color Black
- Basic Gauge Socket Material Brass
- Gauge Socket Material Brass
- Basic Gauge Sensor Material Brass
- Gauge Sensor Material Brass
- Gauge Lens Material Acrylic
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -40 Degrees to 150 Degrees F
- Gauge Special Options Zero Adjustment Screw
- For Use With Media Compatible with Bronze
- Calibration Certificate Included No
- Series P9U
- Manufacturers Warranty Length 5 yr
Manufacturer Details
- Manufacturer: Winters
- Condensed Mfg Number: P9U901410UC
- MPN: P9U901410UC
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
