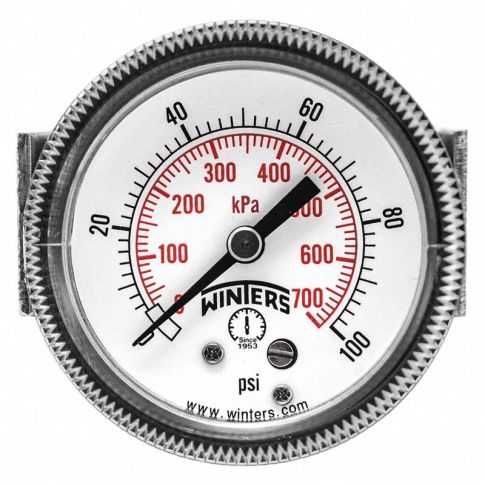

K4522 Pressure Gauge 2 Dial Size Black MPN:P9U901407UC
SKU
226-CXO-491D52
K4522 Pressure Gauge 2 Dial Size Black
The K4522 is a sturdy pressure gauge with two dials and a high contrast display that ensures user safety during measurements. Made of stainless steel for increased durability, this precision instrument can measure up to 0-15psi or 0-7 bar G with ease. Ideal for applications in hydraulic systems, pneumatic circuits, air compressors, steam boilers, automotive or agricultural equipment calibration labs and more; the K4522 is an essential tool in precision process control. Across industries where safety is a top priority - from control rooms to field locations- the K4522 is reliable and versatile for accurate pressure measurements.
Get Winters item #P9U901407UC from our selection of Measuring Tools & Sensors while supporting Veterans 🎖.
Technical Specifications
- Item Pressure Gauge
- Gauge Application General Purpose
- Gauge Nominal Dial Size 2 in
- Basic Gauge Case Material Metal
- Basic Gauge Wetted Parts Brass
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Center Back
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 100
- Gauge Secondary Range Units kPa
- Gauge Secondary Range Values 0 to 690
- Gauge Accuracy +/-2-1-2%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable Yes
- Gauge Mounting Method U Clamp
- Liquid Filled No
- Gauge Primary Range Smallest Graduation 10/50
- Gauge Case Material Steel
- Gauge Primary Range Numbered Graduations 20/100
- Gauge Case Color Black
- Basic Gauge Socket Material Brass
- Gauge Socket Material Brass
- Basic Gauge Sensor Material Brass
- Gauge Sensor Material Brass
- Gauge Lens Material Acrylic
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -40 Degrees to 150 Degrees F
- Gauge Special Options Zero Adjustment Screw
- For Use With Media Compatible with Bronze
- Calibration Certificate Included No
- Series P9U
- Manufacturers Warranty Length 5 yr
Manufacturer Details
- Manufacturer: Winters
- Condensed Mfg Number: P9U901407UC
- MPN: P9U901407UC
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on September 26, 2024 1:02pm UTC
Category: Pressure and Vacuum Measuring
