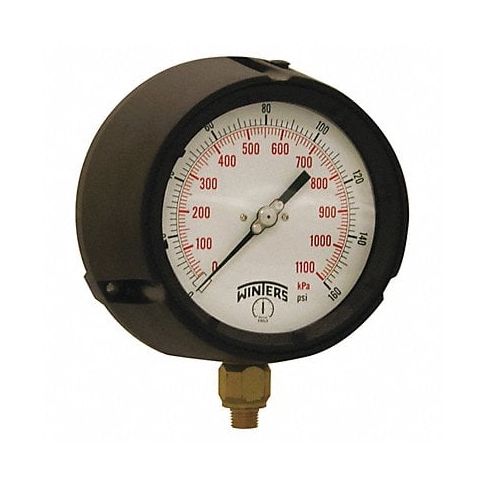

Pressure Gauge 4-1/2 Dial Size Black MPN:PPC5085-G-SG.
SKU
226-CXO-491D29
Pressure Gauge 4-1/2 Dial Size Black
Pressure Gauge is an indispensable instrument designed to measure the level or pressure of various liquids and gases accurately. With a dial size of 4-1/2 inches, it offers easy readability for quick inspections. Its black face ensures optimal contrast against its background while a white backlight enables visibility even under low light conditions. Pressure Gauge has a versatile application range that makes it an attractive investment, monitor both gauge pressure and vacuum directly, with excellent calibration, and reliable precision consistently in various sectors such as food processing, HVAC systems, hydraulics and many more industrial applications.
Buy Winters item #PPC5085-G-SG. to have a positive impact 📈 on our community of Service Disabled Veteran-Owned Business partners.
Technical Specifications
- Item Pressure Gauge
- Gauge Application Process
- Gauge Nominal Dial Size 4 1/2 in
- Basic Gauge Case Material Plastic
- Basic Gauge Wetted Parts Brass
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 160
- Gauge Secondary Range Units kPa
- Gauge Secondary Range Values 0 to 1100
- Gauge Accuracy +/-0.50%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable Yes
- Gauge Mounting Method Surface
- Liquid Filled Yes
- Gauge Primary Range Smallest Graduation 10/50
- Gauge Case Material Phenolic
- Gauge Primary Range Numbered Graduations 20/100
- Gauge Case Color Black
- Basic Gauge Socket Material Brass
- Gauge Socket Material Brass
- Basic Gauge Sensor Material Brass
- Gauge Sensor Material Brass
- Gauge Lens Material Safety Glass
- Gauge Filled With Glycerin
- Basic Gauge Lens Material Glass
- Operating Temp. Range -4 Degrees to 150 Degrees F
- Gauge Special Options Heavy Duty
- For Use With Brass, Industrial Applications, Media Compatible with Copper Alloy
- Calibration Certificate Included No
- Series PPC
- Manufacturers Warranty Length 5 yr
- Features Pressure Relief Back, Solid Front
Manufacturer Details
- Manufacturer: Winters
- Condensed Mfg Number: PPC5085GSG
- MPN: PPC5085-G-SG.
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 23151820
- UNSPSC Class ID: 18
- UNSPSC Commodity Name: Pharmaceutical industry machinery and equipment and supplies
- UNSPSC Commodity ID: 20
- UNSPSC Commodity Name: Pressure gauge
- UNSPSC Family ID: 15
- UNSPSC Family Name: Industrial process machinery and equipment and supplies
- UNSPSC Segment ID: 23
- UNSPSC Segment Name: Industrial Manufacturing and Processing Machinery and Accessories
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:46am UTC
Category: Pressure and Vacuum Measuring
