K4535 Pressure Gauge 4-1/2 Dial Size Silver MPN:PFP716-DRY-45BF

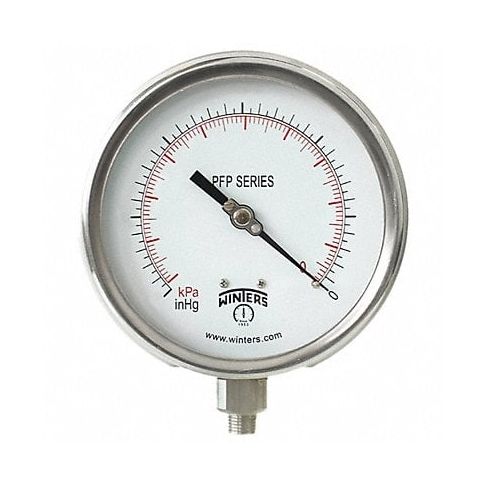

K4535 Pressure Gauge 4-1/2 Dial Size Silver
The K4535 pressure gauge offers high accuracy and reliability for pressures ranging from vacuum to 600psi (4140kPa). Its sturdy bourdon tube ensures durability in harsh environments while the silver dial with black markings enhances visibility, making it ideal for laboratories or any scientific application that demands precision readings. This gauge provides consistent performance in diverse industries like analytical instrumentation, pharmaceuticals, and research where accuracy is of utmost importance.
Buy Winters item #PFP716-DRY-45BF to have a positive impact 📈 on our community of Service Disabled Veteran-Owned Business partners.
Technical Specifications
- Item Pressure Gauge
- Gauge Application General Purpose
- Gauge Nominal Dial Size 4 1/2 in
- Basic Gauge Case Material Metal
- Basic Gauge Wetted Parts Stainless Steel
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 600
- Gauge Secondary Range Units kPa
- Gauge Secondary Range Values 0 to 4140
- Gauge Accuracy +/-1.00%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable Yes
- Gauge Mounting Method Surface
- Liquid Filled No
- Gauge Primary Range Smallest Graduation 50/100
- Gauge Case Material 304 Stainless Steel
- Gauge Primary Range Numbered Graduations 100/500
- Gauge Case Color Stainless Steel
- Basic Gauge Socket Material Stainless Steel
- Gauge Socket Material 316 Stainless Steel
- Basic Gauge Sensor Material Stainless Steel
- Gauge Sensor Material Stainless Steel
- Gauge Lens Material Polycarbonate
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -40 Degrees to 200 Degrees F
- Gauge Special Options Heavy Duty
- For Use With Media Compatible with 316L Stainless Steel
- Calibration Certificate Included No
- Series PFP
- Manufacturers Warranty Length 5 yr
- Features Bayonet Style Ring
Manufacturer Details
- Manufacturer: Winters
- Condensed Mfg Number: PFP716DRY45BF
- MPN: PFP716-DRY-45BF
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on September 26, 2024 1:02pm UTC
Category: Pressure and Vacuum Measuring
