K4526 Pressure Gauge 4-1/2 Dial Size Black MPN:P3S6014
SKU
226-CXO-491A77

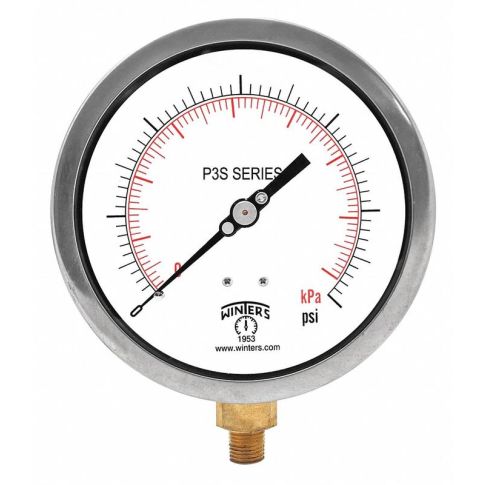

K4526 Pressure Gauge 4-1/2 Dial Size Black
The K4526 Pressure Gauge 4-1/2 Dial Size Black is a high-quality pressure measurement tool designed for professionals in commercial industrial and process dial pressure g industries who require accurate readings of gas or liquid pressure. Made from stainless steel, it offers superior durability and resistance to corrosion while providing an easy-to-read dial face with 0 to 500 psig (3448 kPa) range, making it suitable for a wide range of applications including air compressors, hydraulic systems, pneumatic systems, and more. The K4526 can be mounted on a panel or wall with the included bracket, making it an essential tool for professionals in diverse industries who demand reliable and precise pressure measurements.
Buy Winters item #P3S6014 to have a positive impact 📈 on our community of Service Disabled Veteran-Owned Business partners.
Technical Specifications
- Item Pressure Gauge
- Gauge Application General Purpose
- Gauge Nominal Dial Size 4 1/2 in
- Basic Gauge Case Material Metal
- Basic Gauge Wetted Parts Brass
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 300
- Gauge Secondary Range Units kPa
- Gauge Secondary Range Values 0 to 2100
- Gauge Accuracy +/-0.50%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable No
- Liquid Filled No
- Gauge Primary Range Smallest Graduation 10/100
- Gauge Case Material Aluminum
- Gauge Primary Range Numbered Graduations 50/200
- Gauge Case Color Black
- Basic Gauge Socket Material Brass
- Gauge Socket Material Brass
- Basic Gauge Sensor Material Brass
- Gauge Sensor Material Brass
- Gauge Lens Material Glass
- Basic Gauge Lens Material Glass
- Operating Temp. Range -40 Degrees to 150 Degrees F
- Gauge Special Options Heavy Duty
- For Use With Air, Brass, Fresh Water, Industrial Applications, Media Compatible with Copper Alloy, Oil, Steam
- Calibration Certificate Included No
- Series P3S
- Manufacturers Warranty Length 5 yr
