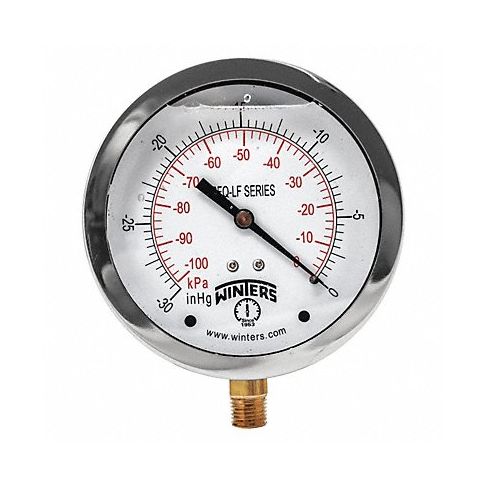

J1383 Gauge Pressure 4in. 30in. Hg Vac to 0 MPN:PFQ700LF

Technical Specifications

• Item Vacuum Gauge
• Gauge Application Lead Free
• Gauge Nominal Dial Size 4 in
• Basic Gauge Case Material Stainless Steel
• Basic Gauge Wetted Parts Brass / Bronze
• Gauge Connection Type MNPT
• Gauge Connection Size 1/4 in
• Gauge Connection Location Bottom
• Gauge Primary Range Units in Hg
• Gauge Primary Range Values -30 to 0
• Gauge Accuracy +/-1.50%
• Pressure and Vacuum Gauge Type Vacuum Gauge
• Gauge Panel Mountable No
• Liquid Filled Yes
• Gauge Case Material 304 Stainless Steel
• Gauge Case Color Stainless Steel
• Basic Gauge Socket Material Brass
• Gauge Socket Material Brass
• Basic Gauge Sensor Material Bronze
• Gauge Sensor Material Lead Free Phosphor Bronze
• Gauge Lens Material Polycarbonate
• Gauge Filled With Glycerin
• Basic Gauge Lens Material Plastic
• Operating Temp. Range -4 Degrees to 150 Degrees F
• Gauge Special Options Restricted Orifice
• Required Gauge Adapter No
• Characteristics Crimp-On Bezel, CRN Registered, Pulsation Resistant, Restricted Orifice
• For Use With Ideal for Plumbing, Heating, Air Conditioning, Pumps, Compressors, Pneumatic Equipment
• Calibration Certificate Included No
• Series PFQ-LF
• Manufacturers Warranty Length 5 yr
• NSF Certified Yes

Manufacturer Details

• Manufacturer: Winters
• Condensed Mfg Number: PFQ700LF
• MPN: PFQ700LF

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9026200000
• GDS Category Name: Lead Free Pressure Gauges
• GDS Family Name: Pressure and Vacuum Measuring
• GDS Segment Name: Test Instruments
• UNSPSC: 23151820
• UNSPSC Class ID: 18
• UNSPSC Commodity Name: Pharmaceutical industry machinery and equipment and supplies
• UNSPSC Commodity ID: 20
• UNSPSC Commodity Name: Pressure gauge
• UNSPSC Family ID: 15
• UNSPSC Family Name: Industrial process machinery and equipment and supplies
• UNSPSC Segment ID: 23
• UNSPSC Segment Name: Industrial Manufacturing and Processing Machinery and Accessories

Shipping Details

• Not For Sale In: HI AK PR
