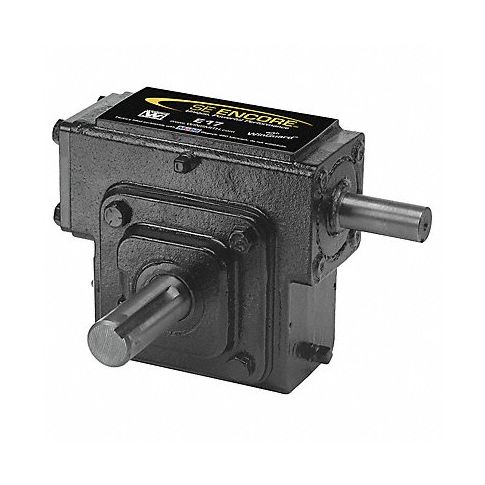

Speed Reducer Indirect Drive 15 1 MPN:E13XWNS 15:1
SKU
226-CXG-4GCA7
Speed Reducer Indirect Drive 15 1
An indirect drive speed reducer with a sturdy construction for demanding environments, it provides reliable power transmission while being adaptable to diverse applications in the food processing industry and robotics that require robustness from its compact design measuring 143 x 77 x 42mm with IP65 rating offering up to 50 m/min of input velocity for shafts as small as 9mm in diameter, providing efficiency unmatched by other models within this category. Additionally, it features a slip clutch that safeguards users from overload and preserves components ensuring reliability even under pressure ensuring satisfaction from those who require the utmost performance for mission-critical processes where safety measures are paramount.
Buy Winsmith item #E13XWNS 15:1 ✯ Made in the USA ✯ and sold by a Veteran-Owned Business.
Technical Specifications
- Item Speed Reducer
- Speed Reducer Type Indirect Drive
- Shaft Orientation Right Angle
- Duty Washdown
- Input RPM 1,725
- Nominal Output RPM 115
- Worm Center Distance 1.33 in
- Frame Solid Input Shaft
- Overhung Load 290 lb
- Nominal Ratio 15:1
- Max. Input HP 0.5 hp
- Max. Output Torque 238.0 in-lb
- Output Torque @ 1/4 HP 119 in-lb
- Output Torque @ 1/3 HP 157 in-lb
- Output Torque @ 1/2 HP 238 in-lb
- Number of Stages 1
- Rotation Reversible
- Mounting Universal
- Lubrication Mobil Glygoyle(R) 460
- Gear Type Worm
- Housing Material Cast Iron
- Finish Epoxy Coating System
- Single/Double Output/Universal Double Output
- Solid/Hollow Output Shaft Solid
- Output Shaft Dia. 3/4 in
- Output Shaft Height 1 3/4 in
- Standards NSF/ASTM B-117
Manufacturer Details
- Manufacturer: Winsmith
- Condensed Mfg Number: E13XWNS151
- MPN: E13XWNS 15:1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483905090
- GDS Category Name: Speed Reducers
- GDS Family Name: Speed Reducers
- GDS Segment Name: Power Transmission
- UNSPSC: 26111503
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Kinetic power transmission
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Adjustable speed drives
- UNSPSC Family ID: 11
- UNSPSC Family Name: Batteries and generators and kinetic power transmission
- UNSPSC Segment ID: 26
- UNSPSC Segment Name: Power Generation and Distribution Machinery and Accessories
Shipping Details
- Not For Sale In: HI AK PR
