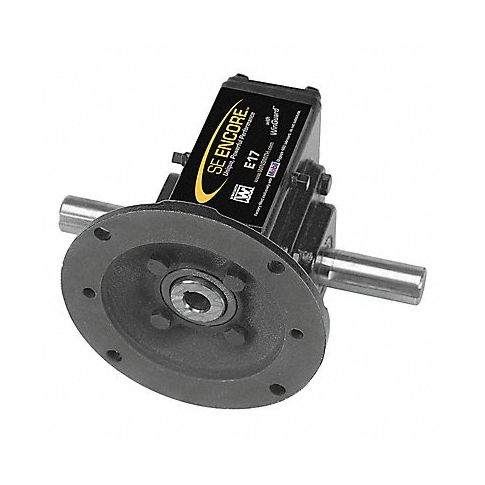

Speed Reducer C-Face 56C 30 1 MPN:E24MWNS 30:1 56C
SKU
226-CXG-4GAU2
Speed Reducer C-Face 56C 30 1
Globus Tools' speed reducer is an essential component in machinery designs tailored to numerous industries requiring reliable power transmission solutions. Its versatile reduction ratio of 30:1 makes it suitable for various machinery types while the C-Face flange design enables easy coupling to servo motors. The lightweight aluminum housing ensures durability without adding excessive weight, and tapered roller bearings provide smooth operation, making it an ideal solution for aerospace, automation, packaging, material handling, and other industries. Engineers, manufacturers, and professionals in power transmission systems can rely on Globus Tools' C-Face speed reducer for efficient and reliable performance across diverse applications.
Buy Winsmith item #E24MWNS 30:1 56C ✯ Made in the USA ✯ and sold by a Veteran-Owned Business.
Technical Specifications
- Item Speed Reducer
- Speed Reducer Type C-Face
- Shaft Orientation Right Angle
- Duty Washdown
- Input RPM 1,725
- Nominal Output RPM 58
- Worm Center Distance 2.38 in
- Bore Dia. 1 1/4 in
- Frame 56C
- Overhung Load 1,025 lb
- Nominal Ratio 30:1
- Max. Input HP 1 hp
- Max. Output Torque 938 in-lb
- Output Torque @ 1/2 HP 469 in-lb
- Output Torque @ 3/4 HP 703 in-lb
- Output Torque @ 1 HP 938 in-lb
- Number of Stages 1
- Rotation Reversible
- Mounting Universal
- Lubrication Mobil Glygoyle(R) 460
- Gear Type Worm
- Housing Material Cast Iron
- Finish Epoxy Coating System
- Single/Double Output/Universal Double Output
- Output Shaft Dia. 1 1/4 in
- Output Shaft Height 2 7/8 in
Manufacturer Details
- Manufacturer: Winsmith
- Condensed Mfg Number: E24MWNS30156C
- MPN: E24MWNS 30:1 56C
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483905090
- GDS Category Name: Speed Reducers
- GDS Family Name: Speed Reducers
- GDS Segment Name: Power Transmission
- UNSPSC: 26111503
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Kinetic power transmission
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Adjustable speed drives
- UNSPSC Family ID: 11
- UNSPSC Family Name: Batteries and generators and kinetic power transmission
- UNSPSC Segment ID: 26
- UNSPSC Segment Name: Power Generation and Distribution Machinery and Accessories
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 6:45am UTC
