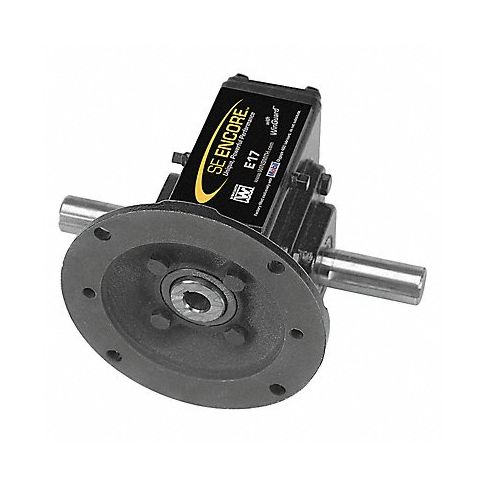

Speed Reducer C-Face 56C 80 1 MPN:E35MWNS 80:1 56C
Speed Reducer model C-face flange 56C offers high-quality speed control for various industrial machines at an economical price point. This unit features a NEMA C-flange mounted on a bolt-on square-flanged back plate that complies with B57.1 standards, allowing easy installation and maintenance in most configurations. With torque range from 449 lb-ft to 12832 lb-ft, this unit delivers versatile speed reduction ratios between 6:1 to 200:1, perfect for managing input horsepower of up to 5 hp or 20 hp depending on the specific configuration. The heat-treated alloy steel gears ensure high durability and resist corrosive environments, while its precision machining provides silent operation in various applications such as packaging machines, conveyors or pumps, offering excellent torque control at low speeds to meet dynamic load demands of an industrial environment. This speed reducer features an anti-backdrive prevention mechanism making it suitable for multiple industries that require robust and reliable performance.
Technical Specifications
- Item Speed Reducer
- Speed Reducer Type C-Face
- Shaft Orientation Right Angle
- Duty Washdown
- Input RPM 1,725
- Nominal Output RPM 22
- Worm Center Distance 3.5 in
- Bore Dia. 1 3/4 in
- Frame 56C
- Overhung Load 2,130 lb
- Nominal Ratio 80:1
- Max. Input HP 1 hp
- Max. Output Torque 2,146 in-lb
- Output Torque @ 3/4 HP 1,609 in-lb
- Output Torque @ 1 HP 2,146 in-lb
- Number of Stages 1
- Rotation Reversible
- Mounting Universal
- Lubrication Mobil Glygoyle(R) 460
- Gear Type Worm
- Housing Material Cast Iron
- Finish Epoxy Coating System
- Single/Double Output/Universal Double Output
- Output Shaft Dia. 1 3/4 in
- Output Shaft Height 4 in
Manufacturer Details
- Manufacturer: Winsmith
- Condensed Mfg Number: E35MWNS80156C
- MPN: E35MWNS 80:1 56C
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483905090
- GDS Category Name: Speed Reducers
- GDS Family Name: Speed Reducers
- GDS Segment Name: Power Transmission
- UNSPSC: 26111503
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Kinetic power transmission
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Adjustable speed drives
- UNSPSC Family ID: 11
- UNSPSC Family Name: Batteries and generators and kinetic power transmission
- UNSPSC Segment ID: 26
- UNSPSC Segment Name: Power Generation and Distribution Machinery and Accessories
Shipping Details
- Not For Sale In: HI AK PR
