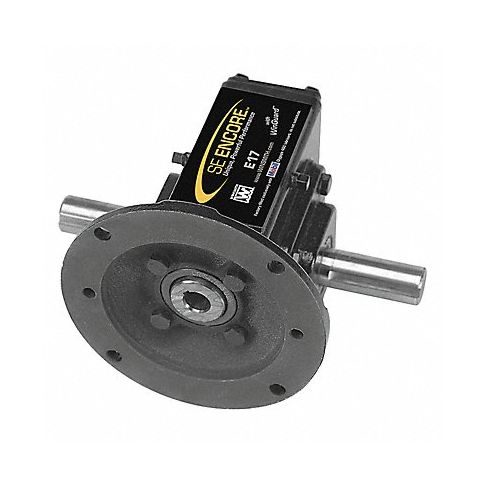

Speed Reducer C-Face 56C 80 1 MPN:E26MWNS 80:1 56C
The Speed Reducer C-face flange model 56C offers high-quality speed control with a NEMA C-flanged mounting configuration for easy installation. The unit features alloy steel gears, precision manufacturing, and corrosion resistance, ideal for industrial environments. Available torque ranges from 449 lb-ft to 12832 lb-ft make it versatile in managing input horsepower up to 5 or 20 hp depending on the configuration. The unit's reduction ratio range offers solutions from 6:1 to 200:1, ensuring smooth low-speed operations and shock-load resistance for multiple industries like food processing and manufacturing. The speed reducer comes with an anti-backdrive prevention mechanism, making it suitable for various applications requiring secure operation. Its wide range of capabilities and cost-effective pricing make this model a top choice for companies seeking reliable performance at a competitive price.
Technical Specifications
- Item Speed Reducer
- Speed Reducer Type C-Face
- Shaft Orientation Right Angle
- Duty Washdown
- Input RPM 1,725
- Nominal Output RPM 22
- Worm Center Distance 2.63 in
- Bore Dia. 1 1/4 in
- Frame 56C
- Overhung Load 1,025 lb
- Nominal Ratio 80:1
- Max. Input HP 0.5 hp
- Max. Output Torque 979 in-lb
- Output Torque @ 1/3 HP 646 in-lb
- Output Torque @ 1/2 HP 979 in-lb
- Number of Stages 1
- Rotation Reversible
- Mounting Universal
- Lubrication Mobil Glygoyle(R) 460
- Gear Type Worm
- Housing Material Cast Iron
- Finish Epoxy Coating System
- Single/Double Output/Universal Double Output
- Output Shaft Dia. 1 1/4 in
- Output Shaft Height 3 1/8 in
Manufacturer Details
- Manufacturer: Winsmith
- Condensed Mfg Number: E26MWNS80156C
- MPN: E26MWNS 80:1 56C
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483905090
- GDS Category Name: Speed Reducers
- GDS Family Name: Speed Reducers
- GDS Segment Name: Power Transmission
- UNSPSC: 26111503
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Kinetic power transmission
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Adjustable speed drives
- UNSPSC Family ID: 11
- UNSPSC Family Name: Batteries and generators and kinetic power transmission
- UNSPSC Segment ID: 26
- UNSPSC Segment Name: Power Generation and Distribution Machinery and Accessories
Shipping Details
- Not For Sale In: HI AK PR
