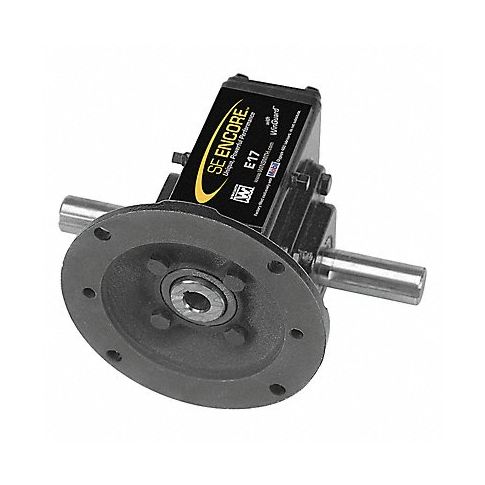

Speed Reducer C-Face 56C 80 1 MPN:E24MWNS 80:1 56C
The Speed Reducer C-Face 56C model is suited for various industries that require reliable speed control such as food processing, manufacturing, packaging or agriculture. It is a versatile product offering different reduction ratios and horsepower ratings, which makes it perfect for various applications including machinery with intermittent duties or high starts & stops cycles where smooth operation and shock-load resistance are vital. This unit's anti-backdrive mechanism guarantees secure operation, while its precision manufacturing delivers low noise levels, contributing to safer working conditions. Its corrosion resistance allows it to operate reliably in harsh environments such as food processing plants or chemical facilities. With a B57.1 compliant NEMA C-face mounting configuration and square flanged back plate for ease of installation & maintenance, this speed reducer provides cost savings without compromising on performance. The overall durability, wide application range, and competitive pricing make the Speed Reducer 56C model a practical solution for industries seeking quality at an economical price point.
Technical Specifications
- Item Speed Reducer
- Speed Reducer Type C-Face
- Shaft Orientation Right Angle
- Duty Washdown
- Input RPM 1,725
- Nominal Output RPM 22
- Worm Center Distance 2.38 in
- Bore Dia. 1 1/4 in
- Frame 56C
- Overhung Load 1,025 lb
- Nominal Ratio 80:1
- Max. Input HP 0.3 hp
- Max. Output Torque 638 in-lb
- Output Torque @ 1/4 HP 484 in-lb
- Output Torque @ 1/3 HP 638 in-lb
- Number of Stages 1
- Rotation Reversible
- Mounting Universal
- Lubrication Mobil Glygoyle(R) 460
- Gear Type Worm
- Housing Material Cast Iron
- Finish Epoxy Coating System
- Single/Double Output/Universal Double Output
- Output Shaft Dia. 1 1/4 in
- Output Shaft Height 2 7/8 in
Manufacturer Details
- Manufacturer: Winsmith
- Condensed Mfg Number: E24MWNS80156C
- MPN: E24MWNS 80:1 56C
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483905090
- GDS Category Name: Speed Reducers
- GDS Family Name: Speed Reducers
- GDS Segment Name: Power Transmission
- UNSPSC: 26111503
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Kinetic power transmission
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Adjustable speed drives
- UNSPSC Family ID: 11
- UNSPSC Family Name: Batteries and generators and kinetic power transmission
- UNSPSC Segment ID: 26
- UNSPSC Segment Name: Power Generation and Distribution Machinery and Accessories
Shipping Details
- Not For Sale In: HI AK PR
