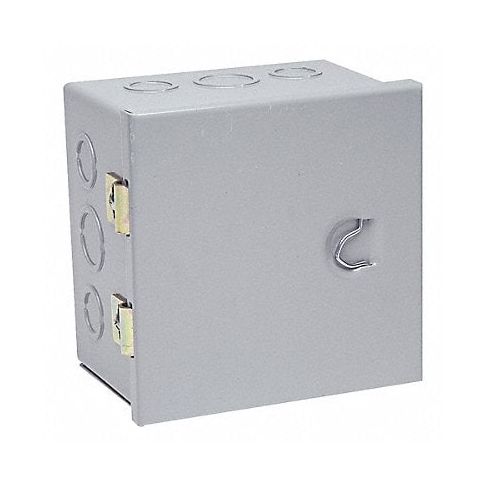

Enclosure Mtlc 12In.Hx 12In.Wx4In.D MPN:A121204
Free Shipping
In Stock
Introducing our Enclosure Mtlc 12In.Hx 12In.Wx4In.D from Wiegmann, an exceptional electrical enclosure that offers superior performance and durability in a wide range of settings. Designed with carbon steel material for maximum strength and resilience, this enclosure provides NEMA rating 1 and metallic non-metallic ratings to ensure top-notch protection against electric shocks, windblown dust, water splashing, hose directed water, and ice formation. Measuring at 4 inches in depth and weighing just 17 pounds, this lightweight enclosure is the perfect choice for use where oil-tight and dust-tight specifications are not required. Offering superior safety features and robust construction, the Enclosure Mtlc 12In.Hx 12In.Wx4In.D from Wiegmann is ideal for various electrical installations such as power distribution, transformer equipment, switchgear assemblies, and control systems in commercial or industrial spaces.
Top product features:
- NEMA rating 1 Ensures top-notch protection against electric shocks and windblown dust, water splashing, hose directed water, and ice formation.
- Metallic/Non-Metallic ratings Provides robust construction and superior safety features for various electrical installations.
- Carbon steel material Offers maximum strength and resilience for maximum durability in commercial or industrial spaces.
Top product applications:
- Protecting electrical components and wiring from external elements such as water, dust, and ice in outdoor settings where oil-tight and dust-tight specifications are not required.
- Enclosing transformers, switches, breakers, motor starters, control circuits, and other equipment in commercial or industrial environments that require superior safety features and robust construction.
- Securing wiring connections and components safely in a sturdy and weather-resistant structure for power distribution systems, signal systems, telecommunication cabinets, or other electrical installations.
Technical Specifications
- Item - Electrical Enclosure Enclosure
- Enclosure NEMA Rating 1
- Metallic / Non-Metallic Metallic
- Material of Enclosure Carbon Steel
- Nominal Enclosure Depth 4 in
- Nominal Enclosure Height 12 in
- Nominal Enclosure Width 12 in
- Enclosure Cover Type Hinged
- Solid / Clear Cover Solid
- Closure Method Screwdown Clamps
- Knockouts Yes
- Finish ANSI 61 Polyester Powder
- Color Gray
- Depth 4.0 in
- Enclosure Cover Features Clamps
- Features Mounting Holes
- Height 12.0 in
- Metal Gauge 16
- Mounting Wall
- Series A
- Standards cULus
- Usable Opening Depth 3.88 in
- Width 12.0 in
Manufacturer Details
- Manufacturer: Wiegmann
- Condensed Mfg Number: A121204
- MPN: A121204
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7326908695
- GDS Category Name: Electrical Enclosures
- GDS Family Name: Enclosures
- GDS Segment Name: Electrical
- UNSPSC: 39121301
- UNSPSC Class ID: 13
- UNSPSC Commodity Name: Electrical boxes and enclosures and fittings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Distribution or control board enclosures
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
