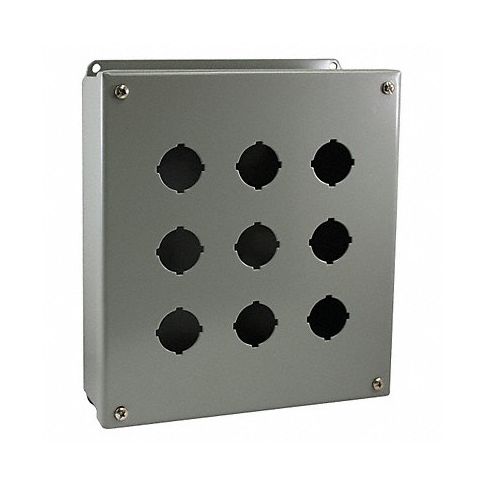

Enclosure Push Button MPN:PB9

30mm JIC and NEMA 12 and 13 Oiltight Push-Button Enclosures
• JIC Standard EL-1-71 14-ga. carbon steel ANSI 61 gray polyester powder-coated finish, except stainless steel Seam welded and ground smooth
Neoprene gasket and mounting flange ensure oiltight seal. Captive cover screws are threaded into deep-well hubs. Grounding stud included.
UL Listed and CSA Certified.

Technical Specifications

• Item Pushbutton Enclosure
• Number of Columns 3
• Number of Holes 9
• NEMA Rating 12, 13, 4
• Conduit Size No Conduit Entrance Holes Provided
• Hole Size 30 mm
• Material Carbon Steel
• Height 9.5 in
• Width 8.5 in
• Depth 3.09 in
• Color ANSI 61 Powder Paint, Stainless Grained
• Includes Neoprene Gasket and Mounting Flange
• Type Oil Tight
• Standards cULus, EGP-1-1967, JIC

Manufacturer Details

• Manufacturer: Wiegmann
• Condensed Mfg Number: PB9
• MPN: PB9

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 7326908695
• GDS Category Name: Pushbutton Enclosures
• GDS Family Name: Enclosures
• GDS Segment Name: Electrical
• UNSPSC: 39121512
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 12
• UNSPSC Commodity Name: Push button switches
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
