Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.57mm Depth of Cut MPN:6171449
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3783392
Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.57mm Depth of Cut
The Widia VSM11 Series Indexable Profiling End Mill is a high-speed steel cutting tool designed for efficient face milling, helical milling, pocketing, and ramping applications. Its 11.57mm depth of cut and 16mm shank diameter provide optimal performance in a range of machining operations. With a compact design and coolant-fed coolant through feature, this end mill ensures high accuracy and reduced tool wear. Ideal for use in various industries, including aerospace, automotive, and general machining, the VSM11 Series offers improved productivity and surface finish, making it a valuable addition to any machining operation.
Top product features:
- Indexable Profiling End Mill is designed for high-speed cutting applications.
- The product features a coolant-fed design for efficient heat management and chip removal.
- The mill is compatible with hardware insert screw M2.5x0.45 x 5.9 T8 and requires a Torx Wrench TX8 for assembly.
Top product applications:
- Face Milling
- Helical Milling
- Pocketing

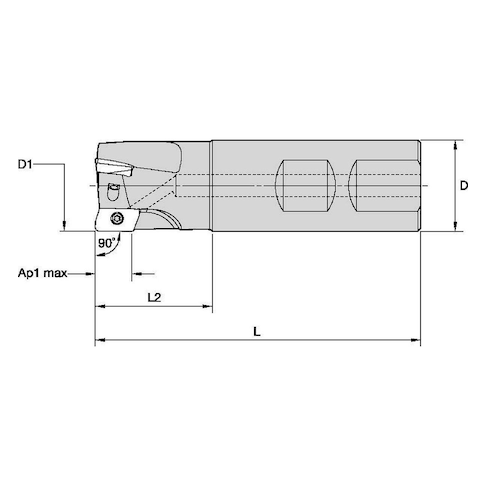

Indexable Profiling End Mill, Depth of Cut 11.57mm, Shank Dia. 16.00mm, Overall Length 70.00mm, ANSI Code VSM11D018Z02B16XD11, Compatible Hardware Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
Additional Information
- Country of Origin: BG
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.27
- Package Width: 1.77
- Package Height: 1.77
- Package Weight: 0.20
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on March 1, 2026 1:49pm UTC
Category: Cutting Tools
