Indexable Profiling End Mill, M200 Series, High Speed Steel, 5.00mm Depth of Cut MPN:5210305
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3781405
Indexable Profiling End Mill, M200 Series, High Speed Steel, 5.00mm Depth of Cut

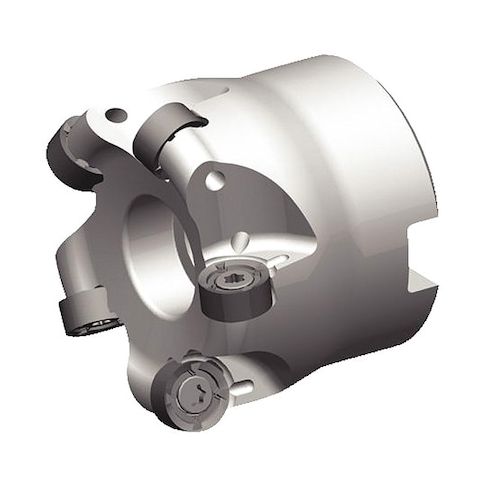

The Widia M200 Series Indexable Profiling End Mill is a high-performance tool designed for demanding machining applications. With a maximum cutting diameter of 40mm and a depth of cut of 5mm, it excels in 3D profiling, face milling, pocketing, and side and face milling operations. The ball nose design enables precise slotting and side/shoulder milling. Its compatibility with coolant-fed systems and anti-seize lubricant ensures optimal cutting performance and tool life. Suitable for a range of industries, including aerospace, automotive, and general machining, this end mill delivers high-speed cutting and accuracy, reducing production time and increasing efficiency.
Top product features:
- Cylindrical Screw DIN912 M8x25
- Coolant Fed Coolant Through
- Cutting Application 3D Profiling, Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End
Top product applications:
- 3D Profiling
- Face Milling
- Side and Face Milling
Indexable Profiling End Mill, Max. Cutting Dia. 40.00mm, Depth of Cut 5.00mm, Overall Length 40.00mm, ANSI Code M200D40Z04RN10, Compatible Hardware Anti-Seize Lubricant, Cylindrical Screw DIN912 M8x25, Insert Screw M3.5x0.6 x 8.3 T15, SHCS with Coolant Groove, Torx Wrench TX15, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 50 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.54
- Package Width: 1.97
- Package Height: 1.97
- Package Weight: 0.52
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 3, 2026 10:17pm UTC
Category: Cutting Tools
