Indexable Profiling End Mill, M680 Series, High Speed Steel, 14.00mm Depth of Cut MPN:2003594
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3781240

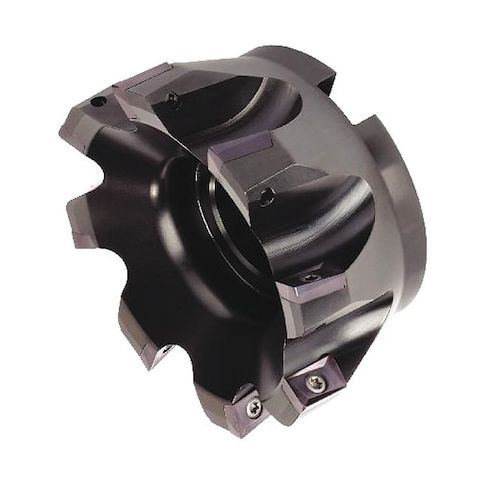

Indexable Profiling End Mill, M680 Series, High Speed Steel, 14.00mm Depth of Cut
The M680 Series Indexable Profiling End Mill from Widia is a high-speed steel cutting tool designed for efficient face milling, side milling, and slotting operations. Its 14.00mm depth of cut and 50.00mm overall length provide versatility in various machining applications. The tool's coolant-fed and non-coolant through capabilities allow for flexibility in different working environments. Suitable for square end milling and slotting, this end mill is ideal for industries requiring precision and speed, including aerospace, automotive, and general machining. Its compact design and high-performance capabilities make it an excellent addition to any machine shop or production line.
Top product features:
- Indexable Profiling End Mill is designed for high-speed cutting applications
- The product is compatible with coolant-fed and non-coolant through systems
- The end mill is suitable for face milling, side milling, and slotting operations
Top product applications:
- Face Milling
- Side and Face Milling
- Side/Shoulder Milling: Square End
Indexable Profiling End Mill, Depth of Cut 14.00mm, Overall Length 50.00mm, ANSI Code 12396905000, Compatible Hardware Insert Screw M3.5x0.6 x 8.9 T15, Torx Wrench, Coolant Fed Non-Coolant Through, Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
Additional Information
- Country of Origin: IN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 49 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.72
- Package Width: 4.72
- Package Height: 2.76
- Package Weight: 3.06
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 2, 2026 1:36pm UTC
Category: Cutting Tools
