Indexable Profiling End Mill, M200 Series, High Speed Steel, 0.1170 in Depth of Cut MPN:5068352
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3780933

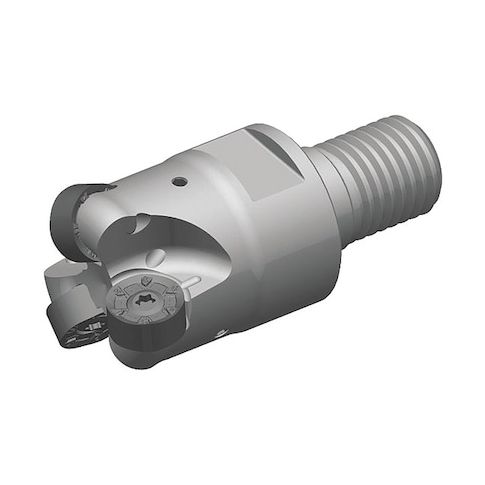

Indexable Profiling End Mill, M200 Series, High Speed Steel, 0.1170 in Depth of Cut
Take your machining operations to the next level with the Widia M200 Series Indexable Profiling End Mill. Designed for high-speed steel, this cutting tool excels in 3D profiling, face milling, pocketing, and side/shoulder milling applications. Its ball nose design and square end capabilities make it ideal for complex parts and precise finishing. With a maximum cutting diameter of 1-1/4 inches and a depth of cut of 0.1170 inches, this end mill delivers efficient and accurate results. Perfect for industries such as aerospace, automotive, and medical, the Widia M200 Series is a reliable choice for demanding machining tasks.
Top product features:
- High Speed Steel construction for durability and long tool life
- Capable of 3D Profiling, Face Milling, Pocketing, and Side/Shoulder Milling with Ball Nose and Square End options
- Coolant Fed design allows for efficient cooling and chip removal during operation
Top product applications:
- 3D Profiling
- Face Milling
- Pocketing
Indexable Profiling End Mill, Max. Cutting Dia. 1-1/4 in, Depth of Cut 0.1170 in, Shank Dia. 29.00mm, ANSI Code M200D125Z03M16RN12, Compatible Hardware Insert Screw M4-0.7 x10 T15, Torx Wrench TX15, Connection Size M16, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Pocketing, Side/Shoulder Milling: Ball Nose, Slotting: Square End
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 31 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.43
- Package Width: 5.51
- Package Height: 3.35
- Package Weight: 0.37
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on March 6, 2026 10:35am UTC
Category: Cutting Tools
