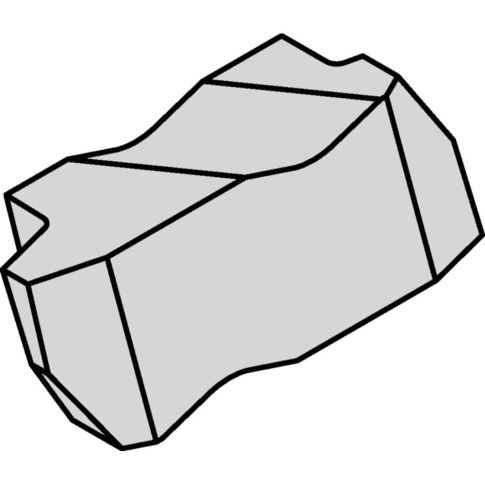

Threading Insert: NA6L3 TN6025, Carbide MPN:3636561
Threading Insert: NA6L3 TN6025, Carbide
Threading Insert: NA6L3 TN6025, Carbide AlTiN Finish, 8.47, Series NA
Product Information
- : 3636561
- Ansi Code: NA6L3
- Chipbreaker: FLAT
- Coating Classification: PVD
- Coating Process: PVD
- Coolant Through: No
- Corner Radius (Decimal Inch): 0.0000
- External Pitch: 8.47
- Finish Coating: AlTiN
- Hole Diameter (Mm) ( - 0 Decimals): 0.0000
- Included Angle: 29.00
- Insert Hand: Left Hand
- Insert Holding Method: Clamp
- Insert Material: Carbide
- Insert Size: 6
- Insert Style: NA
- Internal Pitch: 8.47
- Iso Code: NA6L3
- Manufacturer Grade: TN6025
- Material Grade: TN6025
- Maximum Corner Radius (Decimal Inch): 0.0000
- Maximum Depth of Cut (Decimal Inch): 0.2700
- Series: NA
- Shape: Irregular
- Thickness (Decimal Inch - 4 Decimals): 0.4530
- Thread Standard: ACME
- Thread Type: Internal & External
- Width of Cutting Tip (Decimal Inch): 0.1184
- Width of Cutting Tip (mm): 3.01
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: US, United States
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.09
- Prohibited States: AK,HI,PR
Product info last updated on January 1, 2025 1:21am UTC
Category: Threading and Thread Mill Inserts
