DC Permanent Magnet Motor, 1 HP, 80 A MPN:MT-073

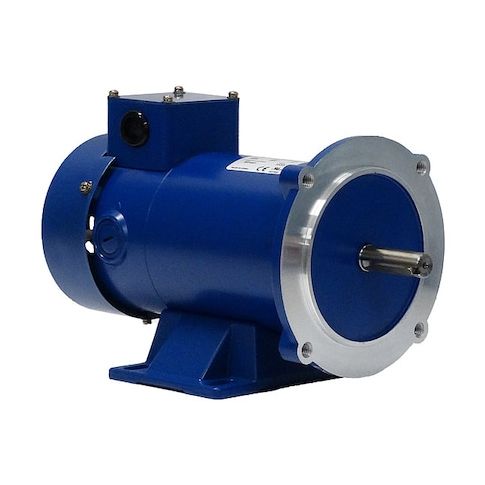

DC Permanent Magnet Motor, 1 HP, 80 A
The Weg DC Permanent Magnet Motor is a reliable and efficient solution for a wide range of applications. With a continuous duty cycle and a robust design, this motor is ideal for use in industrial environments, such as manufacturing plants, material handling systems, and conveyor belt systems. Its high torque output and smooth operation make it suitable for applications requiring precise control, such as robotics and automation systems. The motor's compact design and low maintenance requirements also make it an attractive option for use in space-constrained areas, such as in medical equipment and laboratory settings.
Top product features:
- Permanent Magnet DC motor design
- Totally Enclosed Nonventilated motor enclosure
- Ball bearings for reduced friction and increased motor lifespan
Top product applications:
- Automotive applications
- Industrial automation
- Material handling equipment
DC Permanent Magnet Motor, Not Applicable Phase, Motor Design Permanent Magnet DC, 1 HP, Nameplate RPM 1,750, Voltage 12V DC, 80 A Full Load Amps, 56C Frame, Motor Service Factor 1, Motor Thermal Protection Not Applicable, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Rigid Base, Removable Base Yes, Shaft Dia. 5/8 in, Motor Frame Material Steel, Motor Bearings Ball, Shaft Length 1 7/8 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.50
- Package Width: 8.00
- Package Height: 8.70
- Package Weight: 30.15
Product info last updated on February 5, 2026 2:38am UTC
Category: Motors
