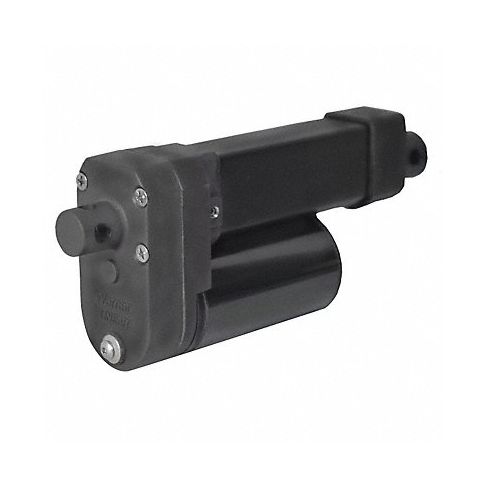

Linear Actuator 12VDC 100 lb 4 In MPN:M1-D012-0100-A04-LN
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXO-18G682
Linear Actuator 12VDC 100 lb. 4 In
Introducing our Linear Actuator 12VDC 100 lb 4 In from Warner Linear - perfect for your automation and motion control needs! This reliable and efficient actuator boasts a 100 lb rated load capacity and a stroke length of 4 inches, making it suitable for various applications. Its speed of 30 in/min ensures quick movement, while the 50% duty cycle allows for continuous operation. Powered by a 12V DC supply, this actuator offers exceptional value and performance, making it ideal for industries such as manufacturing, transportation, and machinery. Upgrade your motion control system with our Linear Actuator today!
Top product features:
- 100 lb rated load capacity for heavy-duty applications
- Stroke length of 4 inches for precision control
- Compatible with a 12VDC power supply for easy integration into existing systems
Top product applications:
- Heavy-duty automation and motion control systems
- Precision positioning and movement in robotics
- Electronic equipment lifting and lowering mechanisms
Get Warner Linear item #M1-D012-0100-A04-LN from our selection of Electrical Motors while supporting Veterans 🎖.
Technical Specifications
- Item Linear Actuator
- Rated Load 100 lb
- Stroke Length 4 in
- Speed @ Rated Load 30 in/min
- Duty Cycle 50 %
- Voltage 12V DC
- Full Load Amps 4.5 A
- Retracted Length 8 1/4 in
- Max. Ambient Temp. 65 Degrees C/150 Degrees F
- Enclosure Type Totally Enclosed Non Ventilated
- Motor Type Permanent Magnet
- Thermal Protection Automatic
- Capacitor Included No
- Capacitor Required No
- Feedback Signal No
- Limit Switch Type Fixed
- Clutch Included No
- Drive System Type Gear
- Bearing Type Dual Quad Ring
- Screw Type Acme
- Nut Material Delrin
- Seal Guide Material Delrin
- Housing Material Aluminum
- Finish Anodized
- Gear Case Type Parallel Spur
- Mounting Type Clevis
- Standards CE Compliant
Manufacturer Details
- Manufacturer: Warner Linear
- Condensed Mfg Number: M1D0120100A04LN
- MPN: M1-D012-0100-A04-LN
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8501314000
- GDS Category Name: Linear Actuators
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31251511
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Actuators
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Linear actuators
- UNSPSC Family ID: 25
- UNSPSC Family Name: Pneumatic and hydraulic and electric control systems
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
