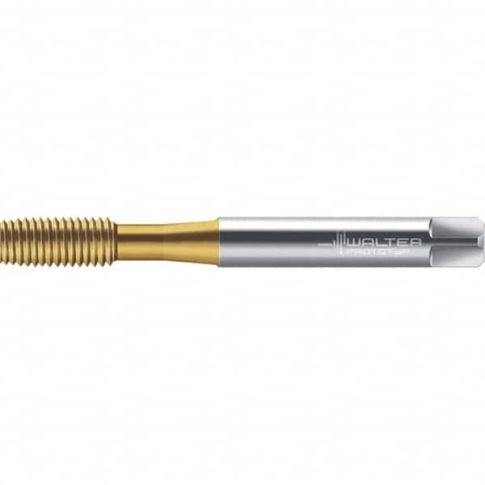

Thread Forming Tap: M8x1.25 DIN 2174, 6GX Class of Fit, Semi-Bottoming, Powdered Metal High Speed Steel, TiN Coated MPN:7427295

Discount: See in Cart
Free Shipping
In Stock
Brand: Walter
Part #: 7427295
SKU
310-96794128
$97.79
Add to Wish List Add to Compare
Thread Forming Tap: M8x1.25 DIN 2174, 6GX Class of Fit, Semi-Bottoming, Powdered Metal High Speed Steel, TiN Coated
Thread Forming Tap: M8x1.25 DIN 2174, 6GX Class of Fit, Semi-Bottoming, Powdered Metal High Speed Steel, TiN Coated 12 mm Thread Length, 90 mm OAL, 7.480, Series TC420

Product Information

  • : 7427295
  • Application: Blind Hole Threading; Through-Hole Threading
  • Chamfer: Modified Bottoming
  • Chamfered Threads: 2-3P
  • Class of Fit: 6GX
  • Coating/Finish: Titanium Nitride
  • Coolant Through: No
  • Flute By Diameter Ratio: 3xD
  • Material: High-Speed Steel-E-PM
  • Material Application: Steel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloy
  • Material Application Code: P; M; K; N; S
  • Material Grade: WW60AD
  • Oil Grooves: 5
  • Overall Length (Decimal Inch): 3.5433
  • Overall Length (mm): 90.00
  • Series: TC420
  • Shank Diameter (Decimal Inch): 0.3150
  • Shank Diameter (mm): 8.00
  • Square Size (Decimal Inch): 0.2441
  • Square Size (mm): 6.20
  • Tapping Depth (Decimal Inch): 1.3780
  • Tapping Depth (mm): 35.00
  • Thread Direction: Right Hand
  • Thread Length (Decimal Inch): 0.4724
  • Thread Length (mm): 12.00
  • Thread Size (mm): M8x1.25
  • Thread Standard: Metric
  • Trade Name: TC420 Supreme

Additional Information

  • Hazardous Materials: No, oK to Ship Via Air
  • Material Safety Data Sheet (MSDS) Required: No
  • Country of Origin: DE, Germany
  • TAA Compliant: Yes
  • UNSPSC: 23241600
  • CA Restricted (Prop 65): Unknown
  • Package Length: 4.53
  • Package Width: 0.59
  • Package Height: 0.59
  • Package Weight: 0.04
  • Prohibited States: AK,HI,PR
Product info last updated on April 4, 2024 10:39am UTC Category: Thread Forming Taps
