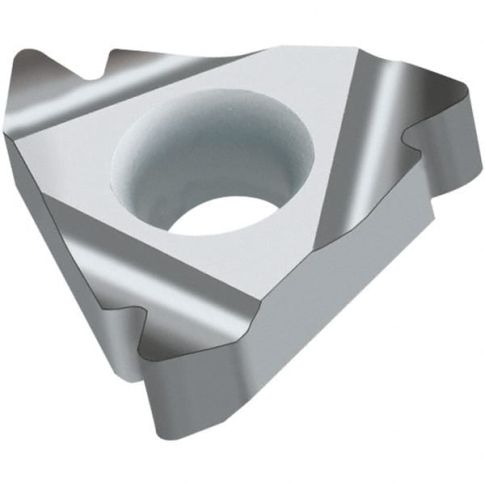

Laydown Threading Insert: NTS-IL-22 N60 WXM20 MPN:5894384
Laydown Threading Insert: NTS-IL-22 N60 WXM20
Laydown Threading Insert: NTS-IL-22 N60 WXM20 TiCN Finish, Left Hand Internal M (Metric 60degree), MF 60degree, UN 60degree, UNC 60degree, UNF 60degree Thread, 12.7mm Inscribed Circle
Product Information
- : 5894384
- Chipbreaker: A27
- Coating Process: PVD
- Coating/Finish: Coated
- Corner Radius (Decimal Inch): 0.0210
- Corner Radius (mm): 0.53
- Hole Diameter (Decimal Inch): 0.1910
- Hole Diameter (Mm) ( - 0 Decimals): 4.85
- Included Angle: 60
- Inscribed Circle (Decimal Inch): 0.5000
- Inscribed Circle (Inch): 1/2
- Inscribed Circle (mm): 12.70
- Insert Hand: Left Hand
- Insert Size Code: 22
- Insert Style: NTS-IR16
- Manufacturer Grade: WXM20
- Number of Teeth Per Side: True
- Pitch (mm): 3.50 to 5.00
- Primary Workpiece Material: Cast Iron; Stainless Steel
- Primary Workpiece Material Code: K; M
- Series: NTS_I_TEIL_60
- Standards: ANSI; ISO
- Thread Standard: MF 60 Degree; Metric 60 Degree; UN 60 Degree; UNC 60 Degree; UNF 60 Degree
- Thread Type: Internal
- Threads Per Inch: 5-7
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: IL, Israel
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Length: 1.08
- Package Width: 1.08
- Package Height: 0.55
- Package Weight: 0.02
- Prohibited States: AK,HI,PR
