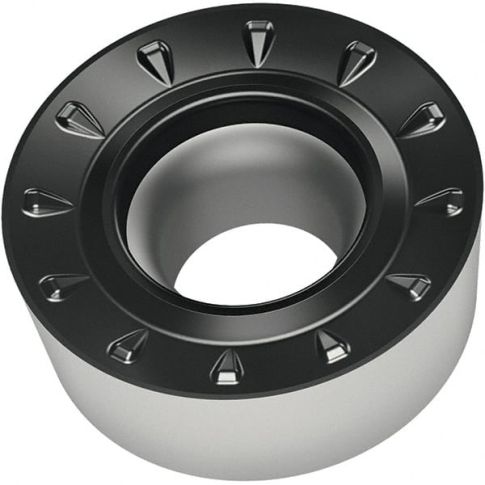

Turning Insert: RCMT0803M0-RP4 WPP30S, Solid Carbide MPN:6461216
Turning Insert: RCMT0803M0-RP4 WPP30S, Solid Carbide
Turning Insert: RCMT0803M0-RP4 WPP30S, Solid Carbide Coated, Neutral, 8 mm Inscribed Circle, 4 mm Corner Radius, Series Tiger-tec Silver
Product Information
- : 6461216
- Chip Breaker: RP4
- Clearance Code: C
- Coating Process: CVD
- Coating/Finish: Coated
- Corner Radius (Decimal Inch): 0.1570
- Corner Radius (mm): 4.00
- Cutting Direction: Neutral
- Inscribed Circle (Decimal Inch): 0.3150
- Inscribed Circle (mm): 8.00
- Insert Hand: Neutral
- Insert Holding Method: Screw
- Insert Material: Solid Carbide
- Insert Shape: Round
- Insert Shape Code: R
- Insert Size Code: 0803M0
- Insert Style: RCMT
- Insert Thickness (Decimal Inch): 0.1250
- Insert Thickness (Inch): 1/8
- Iso Code: RCMT0803M0-RP4 WPP30S
- Manufacturer Grade: WPP30S
- Maximum Depth of Cut (Decimal Inch): 0.1000
- Maximum Depth of Cut (mm): 3.00
- Primary Workpiece Material: Steel
- Primary Workpiece Material Code: P
- Rake: Positive
- Relief Angle: 7
- Secondary Workpiece Material: Stainless Steel
- Secondary Workpiece Material Code: M
- Series: Tiger-tec Silver
- Standards: ANSI; ISO
- Tolerance Code: M
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: DE, Germany
- TAA Compliant: Yes
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Length: 4.00
- Package Width: 2.00
- Package Height: 0.50
- Package Weight: 0.01
- Prohibited States: AK,HI,PR
Product info last updated on July 2, 2024 10:59am UTC
Category: Turning and Profiling Inserts
