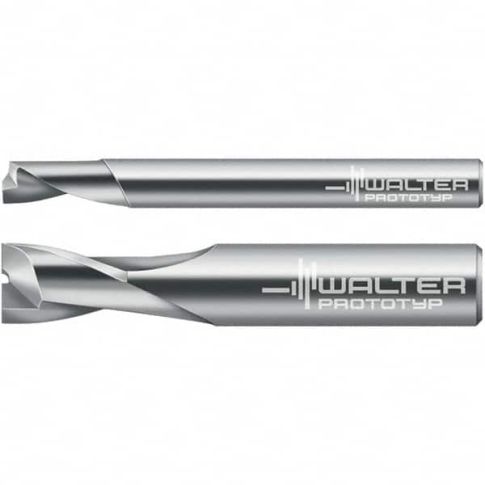

Square End Mill: 0.2362" Dia, 0.3937" LOC, 0.2362" Shank Dia, 1 Flutes, Solid Carbide MPN:5083996
Square End Mill: 0.2362" Dia, 0.3937" LOC, 0.2362" Shank Dia, 1 Flutes, Solid Carbide
VidaSales Square End Mill is an excellent choice for machinists seeking to create square corners, shoulders or grooves with precision. Measuring 10 mm in length of cut (LOC), this solid carbide end mill can tackle a variety of tasks without the need for multiple tools. Its 1-flute design reduces cutting pressure, preventing chips from becoming lodged between teeth and ensuring smooth, uninterrupted cutting action. Ideal for die and mold manufacturers, toolmakers, or anyone working with steel, aluminum, or other materials, the square end mill delivers accuracy and reliability on every project.
Square End Mill: 0.2362" Dia, 0.3937" LOC, 0.2362" Shank Dia, 1 Flutes, Solid Carbide Single End, Right Hand Flute, Spiral Flute, 30 ° Helix, Right Hand Cut, Series H901451
Product Information
- : 5083996
- Centercutting: Yes
- Chipbreaker: No
- Cutting Direction: Right Hand
- End Mill Material: Solid Carbide
- End Type: Single
- Extended Reach: No
- Finish/Coating: Bright/Uncoated
- Flute Direction: Right Hand
- Flute Type: Spiral
- Helix Angle: 30
- Helix Style: Medium
- Length of Cut (Decimal Inch): 0.3937
- Length of Cut (mm): 10.00
- Length of Cut Range (Decimal Inch): 0.3000 - 0.5000
- Length Type: Regular
- Mill Diameter (Decimal Inch): 0.2362
- Mill Diameter (mm): 6.00
- Mill Diameter Tolerance: h10
- Number of Flutes: True
- Overall Length (mm): 57.00
- Primary Workpiece Material: Non-Ferrous Metal
- Primary Workpiece Material Code: N
- Reach Length (Decimal Inch): 0.3940
- Reach Length (mm): 10.00
- Series: H901451
- Shank Diameter (Decimal Inch): 0.2362
- Shank Diameter (mm): 6.00
- Shank Diameter Tolerance: h6
- Shank Type: Straight-Cylindrical
- Variable Helix: No
- Variable Index: No
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: DE, Germany
- TAA Compliant: Yes
- UNSPSC: 27112821
- CA Restricted (Prop 65): Unknown
- Package Length: 3.74
- Package Width: 0.59
- Package Height: 0.55
- Package Weight: 0.06
- Prohibited States: AK,HI,PR
