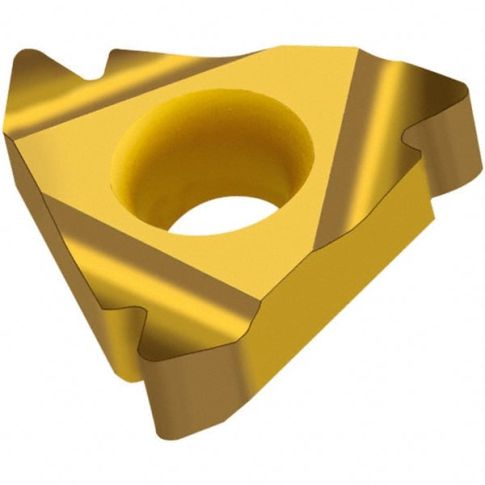

Laydown Threading Insert: NTS-EL-16 G60 WXM20 MPN:5894189
Laydown Threading Insert: NTS-EL-16 G60 WXM20
Laydown Threading Insert: NTS-EL-16 G60 WXM20 TiCN Finish, Left Hand External M (Metric 60degree), MF 60degree, UN 60degree, UNC 60degree, UNF 60degree Thread, 9.53mm Inscribed Circle
Product Information
- : 5894189
- Chipbreaker: A27
- Coating Process: PVD
- Coating/Finish: Coated
- Corner Radius (Decimal Inch): 0.0110
- Corner Radius (mm): 0.27
- Hole Diameter (Decimal Inch): 0.1520
- Hole Diameter (Mm) ( - 0 Decimals): 3.85
- Included Angle: 60
- Inscribed Circle (Decimal Inch): 0.3750
- Inscribed Circle (Inch): 3/8
- Inscribed Circle (mm): 9.53
- Insert Hand: Left Hand
- Insert Size Code: 16
- Insert Style: NTS-EL16
- Manufacturer Grade: WXM20
- Number of Teeth Per Side: True
- Pitch (mm): 1.75 to 3.00
- Primary Workpiece Material: Cast Iron; Stainless Steel
- Primary Workpiece Material Code: K; M
- Series: NTS_E_TEIL_60
- Standards: ANSI; ISO
- Thread Standard: MF 60 Degree; Metric 60 Degree; UN 60 Degree; UNC 60 Degree; UNF 60 Degree
- Thread Type: External
- Threads Per Inch: 8-14
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: IL, Israel
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.01
- Prohibited States: AK,HI,PR
Product info last updated on July 16, 2024 12:02pm UTC
Category: Threading and Thread Mill Inserts
