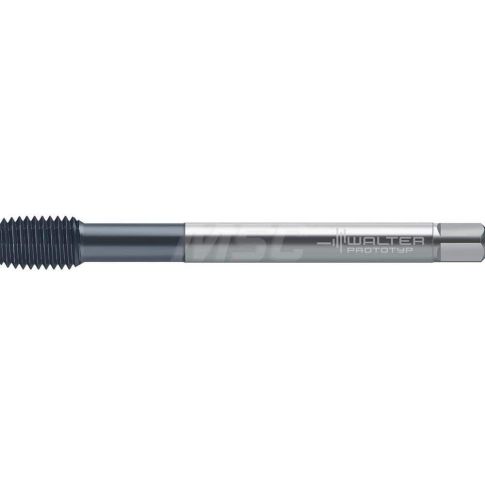

Thread Forming Tap: MF10x1.25 DIN 2174, 6HX Class of Fit, 2 to 3P, Powdered Metal High Speed Steel, AlCrN Coated MPN:7958132
Thread Forming Tap: MF10x1.25 DIN 2174, 6HX Class of Fit, 2 to 3P, Powdered Metal High Speed Steel, AlCrN Coated
For seamless creation of internal threads on steel materials with precision finishes that meet even the highest expectations, our Thread Forming Tap (MF12x1.25 DIN 2174) excels amongst other options; its durability across heavy-duty applications including automotive components manufacturing alongside the oil & gas industry has cemented its status as a top pick for professionals relying on dependable threading tools within countless diverse industries.
Thread Forming Tap: MF10x1.25 DIN 2174, 6HX Class of Fit, 2 to 3P, Powdered Metal High Speed Steel, AlCrN Coated 15 mm Thread Length, 100 mm OAL, Series TC430
Product Information
- : 7958132
- Application: Blind Hole Threading; Through-Hole Threading
- Chamfer: Modified Bottoming
- Chamfered Threads: 2-3P
- Class of Fit: 6HX
- Coating/Finish: AlCrN
- Coolant Through: Yes
- Flute By Diameter Ratio: 3.5xD
- Material: High-Speed Steel-E-PM
- Material Application Code: P; M; K; N
- Material Grade: WW60EL
- Oil Grooves: 7
- Overall Length (Decimal Inch): 3.9370
- Overall Length (mm): 100.00
- Series: TC430
- Shank Diameter (Decimal Inch): 0.2756
- Shank Diameter (mm): 7.00
- Square Size (Decimal Inch): 0.2165
- Square Size (mm): 5.50
- Tapping Depth (Decimal Inch): 3.0315
- Tapping Depth (mm): 77.00
- Thread Direction: Right Hand
- Thread Length (Decimal Inch): 0.5906
- Thread Length (mm): 15.00
- Thread Size (mm): M10x1.25
- Thread Standard: Metric Fine
- Trade Name: TC430 Supreme
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: DE, Germany
- TAA Compliant: Yes
- UNSPSC: 23241600
- CA Restricted (Prop 65): Unknown
- Package Length: 4.53
- Package Width: 0.60
- Package Height: 0.60
- Package Weight: 0.08
- Prohibited States: AK,HI,PR
Related ASINs: B0BXXK6TKN, B09H5LSL6N, B0C3LPSCZ4
Product info last updated on April 1, 2025 5:31pm UTC Category: Thread Forming Taps
