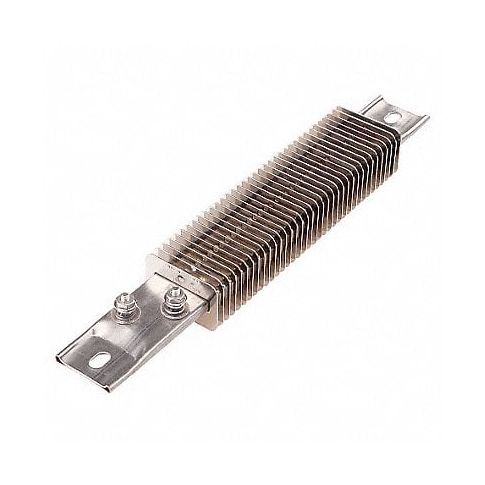

Finned Strip Heater 240V 25-1/2 in L MPN:OSF1525-1500B
Finned Strip Heater 240V 25-1/2 in L
Eliminate wait time associated with heating large volumes of liquid materials quickly using this finned strip heater - designed specifically for manufacturing or process heating applications where accurate temperature control is key; its compact design easily mounts on any flat surface while delivering even heat distribution across the entire surface ensuring consistent results at all times; the durable construction means that it'll last even under prolonged use situations making it a versatile addition to any production line!
Stainless Steel Finned Strip Heaters • 1-1/2"W element 5/16"W x 1/2"L slotted holes 10-32 screw terminals 1-3/8"H x 2"W across finsSeamless 304 stainless steel tube provides the best combination of physical strength and resistance to high temps. and chemical corrosion. Sheath temp.: 1200°F max. Fins are nickel-plated steel.UL Recognized.
Technical Specifications
- Item Finned Strip Heater
- Heater Voltage 240V AC
- Overall Length 25 1/2 in
- Mounting Dimension 24 1/2 in
- Watts 1,500 W
- Watt Density 20W/sq in
- Terminals Offset
- Element Width 1 1/2 in
- Sheath Material Seamless 304 Stainless Steel
- Material Nickel Plated Steel
- Phase 1
- H x W Across Fins 1-3/8 x 2 in
- Max. Sheath Temp. 1,200 Degrees F
- Mounting Type Surface Mount
- Slotted Hole Length 1/2 in
- Slotted Hole Width 5/16 in
- Screw Size 10-32
- Standards UL Recognized, UL Certified for Canadian Use, E60605
- Includes Mounting Tabs
Manufacturer Details
- Manufacturer: Vulcan
- Condensed Mfg Number: OSF15251500B
- MPN: OSF1525-1500B
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8516808000
- GDS Category Name: Finned Strip Heaters
- GDS Family Name: Electric Process Heaters and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101821
- UNSPSC Class ID: 18
- UNSPSC Commodity Name: Heating equipment and parts and accessories
- UNSPSC Commodity ID: 21
- UNSPSC Commodity Name: Strip heaters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B08JCH41SG, B08JCQQCNX, B01KUYWQG6
