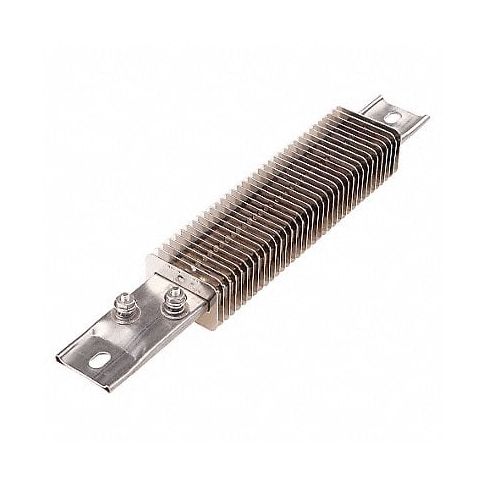

Finned Strip Heater 240V 19-1/2 in L MPN:OSF1519-1000B
Finned strip heaters provide precise temperature control to various sectors of industry requiring uniform heat distribution for a wide range of processes such as soldering, baking, drying and many more. One notable customer base is electronic manufacturers who often require finned strip heater models to provide heat to their equipment evenly without causing any damage or excessive energy consumption. With the capacity of producing up to 19-1/2 in L of uniform heating surface, this product offers versatility, efficiency and precision with its high watt density providing fast warm-up time while consuming only minimal power at just 240V. Its resistance element is encased within an aluminum sheath which serves as a heat transfer agent to ensure optimal temperature dispersion thus prolonging the lifespan of the heating element and maintaining its consistent performance over time. Finned strip heaters offer substantial benefits not only for their precision engineering and efficiency but also with cost reduction through minimized maintenance requirements leading to increased productivity; making them valuable assets in industries such as automotive, aerospace, medical, food processing and many more.
Technical Specifications
- Item Finned Strip Heater
- Heater Voltage 240V AC
- Overall Length 19 1/2 in
- Mounting Dimension 18 1/2 in
- Watts 1,000 W
- Watt Density 18W/sq in
- Terminals Offset
- Element Width 1 1/2 in
- Sheath Material Seamless 304 Stainless Steel
- Material Nickel Plated Steel
- Phase 1
- H x W Across Fins 1-3/8 x 2 in
- Max. Sheath Temp. 1,200 Degrees F
- Mounting Type Surface Mount
- Slotted Hole Length 1/2 in
- Slotted Hole Width 5/16 in
- Screw Size 10-32
- Standards UL Recognized, UL Certified for Canadian Use, E60605
- Includes Mounting Tabs
Manufacturer Details
- Manufacturer: Vulcan
- Condensed Mfg Number: OSF15191000B
- MPN: OSF1519-1000B
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8516808000
- GDS Category Name: Finned Strip Heaters
- GDS Family Name: Electric Process Heaters and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101821
- UNSPSC Class ID: 18
- UNSPSC Commodity Name: Heating equipment and parts and accessories
- UNSPSC Commodity ID: 21
- UNSPSC Commodity Name: Strip heaters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
