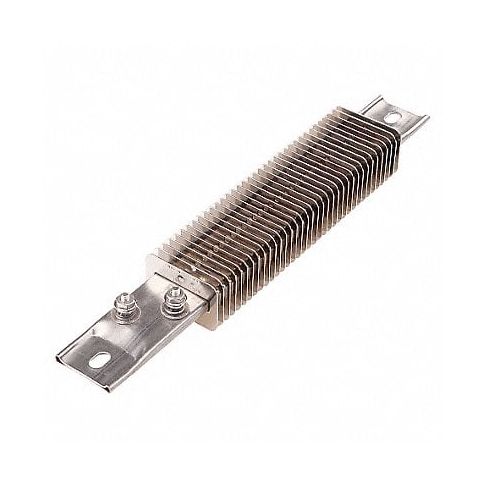

Finned Strip Heater 120V 10-1/2 in L MPN:OSF1510-475A
Finned Strip Heater 120V 10-1/2 in L
The Finned Strip Heater is a versatile, high-power heating element perfect for various industrial processes and HVAC systems. This heavy-duty component utilizes fins to increase surface area, allowing efficient heat distribution and dissipation across large surfaces or volumes. With dimensions of 10-1/2 inches in length and designed for 120V operation, it's suitable for use in numerous applications such as curing processes, industrial ovens, and refrigeration equipment. Offering precise temperature control and energy efficiency, the Finned Strip Heater is ideal for both residential and commercial settings, ensuring consistent, reliable heating performance across different industries.
Stainless Steel Finned Strip Heaters • 1-1/2"W element 5/16"W x 1/2"L slotted holes 10-32 screw terminals 1-3/8"H x 2"W across finsSeamless 304 stainless steel tube provides the best combination of physical strength and resistance to high temps. and chemical corrosion. Sheath temp.: 1200°F max. Fins are nickel-plated steel.UL Recognized.
Technical Specifications
- Item Finned Strip Heater
- Heater Voltage 120V AC
- Overall Length 10 1/2 in
- Mounting Dimension 9 1/2 in
- Watts 475 W
- Watt Density 22W/sq in
- Terminals Offset
- Element Width 1 1/2 in
- Sheath Material Seamless 304 Stainless Steel
- Material Nickel Plated Steel
- Phase 1
- H x W Across Fins 1-3/8 x 2 in
- Max. Sheath Temp. 1,200 Degrees F
- Mounting Type Surface Mount
- Slotted Hole Length 1/2 in
- Slotted Hole Width 5/16 in
- Screw Size 10-32
- Standards UL Recognized, UL Certified for Canadian Use, E60605
- Includes Mounting Tabs
Manufacturer Details
- Manufacturer: Vulcan
- Condensed Mfg Number: OSF1510475A
- MPN: OSF1510-475A
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8516808000
- GDS Category Name: Finned Strip Heaters
- GDS Family Name: Electric Process Heaters and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101821
- UNSPSC Class ID: 18
- UNSPSC Commodity Name: Heating equipment and parts and accessories
- UNSPSC Commodity ID: 21
- UNSPSC Commodity Name: Strip heaters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
