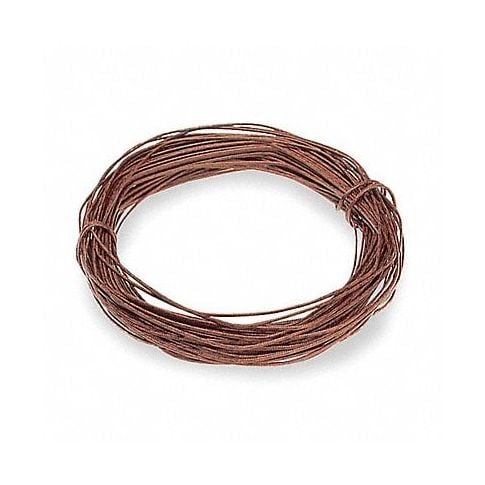

Thermocouple Ext Wire KX 20AWG Brn 100ft MPN:N56/07027

Thermocouple extension wire is a flexible, insulated wire used to extend a thermocouple signal from a probe back to the instrument reading the signal. It works accurately over a narrower temperature range than thermocouple wire and can't be used in the sensing point (or probe part) of the thermocouple. It is typically used as an extension to a measuring instrument over long distances.

Thermocouple wire and cable are types of flexible, insulated wire that sense the temperature of an object and feed that information to a temperature control device or to a temperature measuring or monitoring device. They can also be used to create the sensing point (or probe) in a thermocouple. They are commonly used to maintain or monitor a component's temperature in industrial processes where high heat is present, such as kilns, gas turbine exhaust, or diesel engines. They are also used in safety devices, such as flame sensors in gas-powered appliances.

Technical Specifications

• Item Thermocouple Extension Wire
• Number of Conductors 2
• Wire Size 20 AWG
• Insulation Material PVC
• Trade Designation KX
• Jacket Color Brown
• Conductor Design Solid
• Length 100 ft
• Temp. Rating 221 Degrees F
• Used In Oxidizing and Reducing Atmosphere
• Standards ANSI

Manufacturer Details

• Manufacturer: Vulcan
• Condensed Mfg Number: N5607027
• MPN: N56/07027

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9033000000
• GDS Category Name: Thermocouple Wire
• GDS Family Name: Wire and Cable
• GDS Segment Name: Electrical
• UNSPSC: 26121613
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Electrical cable and accessories
• UNSPSC Commodity ID: 13
• UNSPSC Commodity Name: Insulated or covered cable
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical wire and cable and harness
• UNSPSC Segment ID: 26
• UNSPSC Segment Name: Power Generation and Distribution Machinery and Accessories

Shipping Details

• Not For Sale In: HI AK PR
