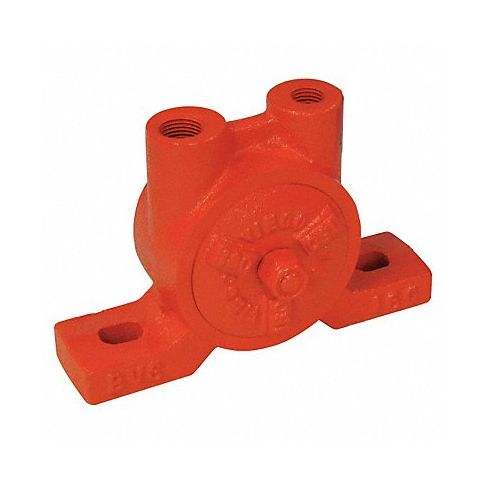

Pneumatic Vibrator 160 lb 9500 vpm 80psi MPN:BVS-160

Offering high force output from a patented design, this maintenance-free Vibco® vibrator features threaded exhaust for closed-air environments and other applications where exhausted air must be remotely discharged. It uses 30% less air than comparable pneumatic vibrators, outlasts ball and piston vibrators 3 to 1, and makes no more noise than an electric motor. No lubrication required.

Technical Specifications

• Item Pneumatic Vibrator
• Vibrator Type Turbine
• Force Rating 160 lb
• Duty Continuous
• Bin Weight Capacity 1,600 lb
• Speed @ 60 psi 9,500 vpm
• Speed @ 80 psi 11,000 vpm
• CFM @ 60 psi 2.3
• CFM @ 80 PSI 2.5
• dB @ 80 psi 70
• Max. Pressure 80 psi
• Max. Temp. 350 Degrees F
• Inlet Port 1/4 in NPT
• Outlet Port 3/8 in NPT
• Muffler 1A327
• Mounting Plate Sold Separately
• Housing Material Cast Iron
• Bearing Type Oversized
• Overall Length 5 1/2 in
• Overall Width 2 7/8 in
• Overall Height 3 5/8 in
• Application Automotive, Chemical, Plastics, Bio-tech, Plating and Food Industries, Where Exhausted Air Must be Remotely Discharged Using a Threaded Exhaust Port
• Standards CE Certified, ATEX Certified

Manufacturer Details

• Manufacturer: Vibco
• Condensed Mfg Number: BVS160
• MPN: BVS-160

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8479899895
• GDS Category Name: Pneumatic Vibrators
• GDS Family Name: Vibrators
• GDS Segment Name: Power Transmission
• UNSPSC: 24101727
• UNSPSC Class ID: 17
• UNSPSC Commodity Name: Conveyors and accessories
• UNSPSC Commodity ID: 27
• UNSPSC Commodity Name: Vibrating conveyors
• UNSPSC Family ID: 10
• UNSPSC Family Name: Material handling machinery and equipment
• UNSPSC Segment ID: 24
• UNSPSC Segment Name: Material Handling and Conditioning and Storage Machinery and their Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
