Pneumatic Vibrator 585 lb 4000 vpm 80psi MPN:50-1-1/2
SKU
226-CXG-4HT47

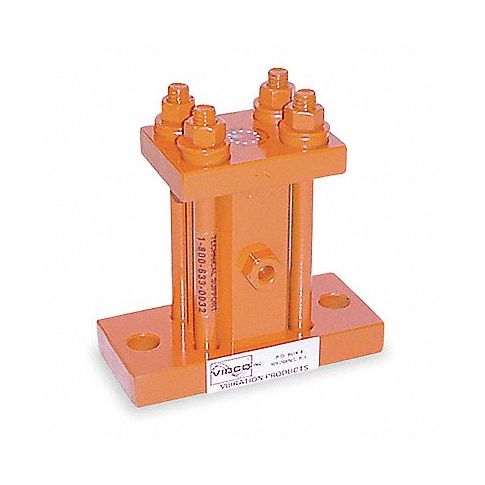

Pneumatic Vibrator 585 lb 4000 vpm 80psi
Pneumatic Vibrator 585lb 4000vpm 80psi, with its powerful output, provides maximum vibration frequency and air pressure to eliminate residues or blockages in materials such as concrete or aggregate aggregates during batch plant operations, precast production, truck or rail car unloading among others. Its compact size enhances maneuverability when used for excavation works like breaking frozen soil on roadsides or clearing dirt buildup while preventing damage to fragile structures as it's designed to transmit powerful shockwaves efficiently without generating excessive noise levels suitable for mining, manufacturing, automotive or construction applications.
Buy Vibco item #50-1-1/2 ✯ Made in the USA ✯ and sold by a Veteran-Owned Business.
Technical Specifications
- Item Pneumatic Vibrator
- Vibrator Type Piston
- Force Rating 585 lb
- Duty Continuous
- Bin Weight Capacity 4,000 lb
- Speed @ 60 psi 4,000 vpm
- Speed @ 80 psi 5,200 vpm
- CFM @ 60 psi 9
- CFM @ 80 PSI 11
- dB @ 80 psi 95
- Max. Pressure 80 psi
- Inlet Port 1/4 in NPT
- Outlet Port 1/4 in NPT
- Muffler 1A326
- Mounting Foot
- Mounting Plate Sold Separately
- Housing Material Steel
- Overall Length 7 1/2 in
- Overall Width 3 in
- Overall Height 7 15/16 in
- Application Mining, Chemical Plants, Plastics, Manufacturing, Foundries and Paper Plants
- Standards CE Certified
Manufacturer Details
- Manufacturer: Vibco
- Condensed Mfg Number: 50112
- MPN: 50-1-1/2
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8479899895
- GDS Category Name: Pneumatic Vibrators
- GDS Family Name: Vibrators
- GDS Segment Name: Power Transmission
- UNSPSC: 24101727
- UNSPSC Class ID: 17
- UNSPSC Commodity Name: Conveyors and accessories
- UNSPSC Commodity ID: 27
- UNSPSC Commodity Name: Vibrating conveyors
- UNSPSC Family ID: 10
- UNSPSC Family Name: Material handling machinery and equipment
- UNSPSC Segment ID: 24
- UNSPSC Segment Name: Material Handling and Conditioning and Storage Machinery and their Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 6:46am UTC
Category: Vibrators
