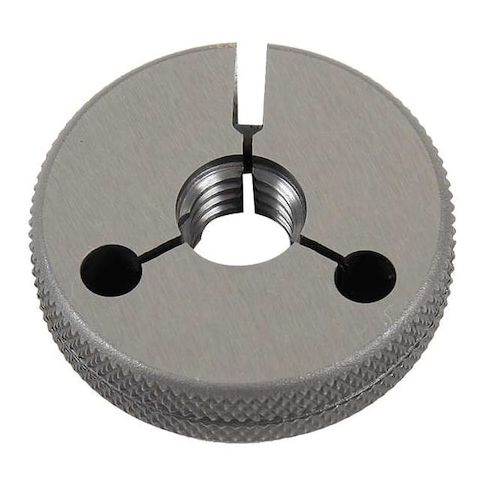

Adj. No Go Ring Gage, 1/4-32 UNEF 2A MPN:361128030
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2007381
Adj. No Go Ring Gage, 1/4-32 UNEF 2A
This Adj. No Go Ring Gage is a precision tool for measuring and verifying thread sizes. It is ideal for aerospace, automotive, and industrial applications where thread accuracy is critical. The gage is designed to ensure that threads meet specifications, preventing costly rework and ensuring product reliability. The long form calibration certificate provides assurance of accuracy and NIST traceability. Its adjustable design and tool steel construction make it durable and versatile, while the included certification certificate provides peace of mind. Use it to verify threads in aircraft, engines, and other critical systems where precision is paramount.
Top product features:
- Threaded design allows for precise measurement of 1/4-32 UNEF threads.
- Adjustable gauge design enables accurate fitment testing across a range of thread sizes.
- Hardened tool steel construction provides durability and resistance to wear.
Top product applications:
- Quality control in manufacturing
- Thread inspection in aerospace industries
- Precision assembly of critical components
Threaded Ring Gauge, Long Form Calibration Certificate No, Material Tool Steel, Dimension Type Inch, Gauge Type No-Go (Minus), Pitch Diameter 0.2255 in, Pitch Diameter - No-Go Member 0.2255 in, Thread Class 2A, Thread Length 11/32 in, Thread Size 1/4 In.-32, Thread Type UNEF, Compatible Holder Size 2T, Finish Uncoated, Gauge Design Adjustable, Hardness RC 60-62, Included Certification Certificate of Accuracy with NIST Traceability, Standards ASME B1.2, Tolerance Class X
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 2.40
- Package Height: 1.10
- Package Weight: 0.13
Product info last updated on March 24, 2026 7:10pm UTC
Category: Measuring and Marking Tools
