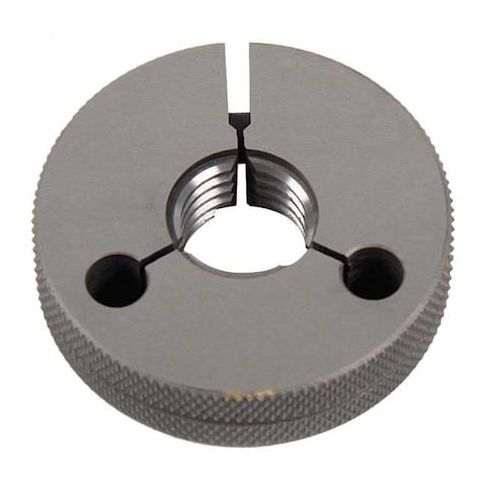

Adj. No Go Ring Gage, 9/16-24 UNEF 2A MPN:361145530
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1538993
Adj. No Go Ring Gage, 9/16-24 UNEF 2A
Ensure precise thread measurements with the Adj. No Go Ring Gage from Vermont Gage. This long-form calibration certificate accompanies the tool steel gauge, which is designed for use with 9/16-24 UNEF 2A threads. The no-go gauge measures 0.5303 inches in pitch diameter, providing a clear indication of thread incompatibility. Ideal for industries such as aerospace, automotive, and manufacturing, this gauge helps maintain quality control and prevent costly rework. Its adjustable design and NIST-traceable certification ensure accuracy, making it a valuable addition to any quality assurance program.
Top product features:
- Threaded design for UNEF threads
- Adjustable gauge for accurate measurement
- NIST-traceable calibration certificate for guaranteed accuracy
Top product applications:
- Thread inspection and verification during manufacturing
- Quality control in aerospace and defense industries
- Assembly and inspection of UNEF threaded components
Threaded Ring Gauge, Long Form Calibration Certificate No, Material Tool Steel, Dimension Type Inch, Gauge Type No-Go (Minus), Pitch Diameter 0.5303 in, Pitch Diameter - No-Go Member 0.5303 in, Thread Class 2A, Thread Length 9/16 in, Thread Size 9/16 In.-24, Thread Type UNEF, Compatible Holder Size 4T, Finish Uncoated, Gauge Design Adjustable, Hardness RC 60-62, Included Certification Certificate of Accuracy with NIST Traceability, Standards ASME B1.2, Tolerance Class X
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 3.20
- Package Height: 1.50
- Package Weight: 0.60
Product info last updated on February 12, 2026 3:00pm UTC
Category: Measuring and Marking Tools
