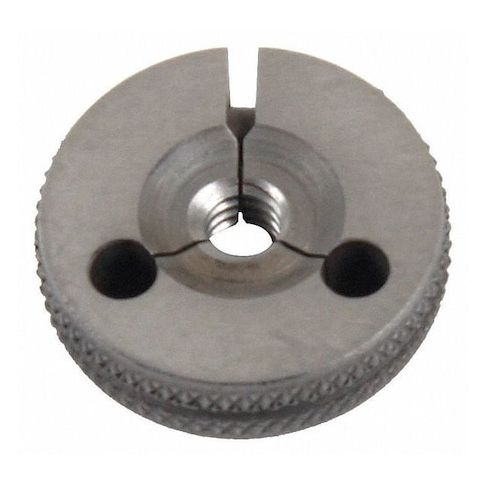

Adj. No Go Ring Gage, No 10-32 UNF 2A MPN:361121030
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0394694
Adj. No Go Ring Gage, No 10-32 UNF 2A
This No Go Ring Gage is a precision tool for thread inspection, ensuring accurate measurements and reliable results. Suitable for use in various industries, including aerospace, automotive, and manufacturing, it features a long form calibration certificate and NIST traceability for added assurance. With a pitch diameter of 0.1658 in and a thread class of 2A, this gage is ideal for inspecting #10-32 UNF threads. Its durable tool steel construction and adjustable design make it a valuable addition to any quality control process, helping to prevent costly mistakes and ensure compliance with ASME B1.2 standards.
Top product features:
- Threaded for #10-32 UNF 2A threads
- Adjustable gauge design
- Includes a certificate of accuracy with NIST traceability
Top product applications:
- Quality control for manufacturing processes
- Thread inspection for production lines
- Precision assembly and installation of small parts
Threaded Ring Gauge, Long Form Calibration Certificate No, Material Tool Steel, Dimension Type Inch, Gauge Type No-Go (Minus), Pitch Diameter 0.1658 in, Pitch Diameter - No-Go Member 0.1658 in, Thread Class 2A, Thread Length 3/16 in, Thread Size #10-32, Thread Type UNF, Compatible Holder Size 1T, Finish Uncoated, Gauge Design Adjustable, Hardness RC 60-62, Included Certification Certificate of Accuracy with NIST Traceability, Standards ASME B1.2, Tolerance Class X
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 2.40
- Package Height: 1.10
- Package Weight: 0.10
Product info last updated on January 14, 2026 5:22pm UTC
Category: Measuring and Marking Tools
