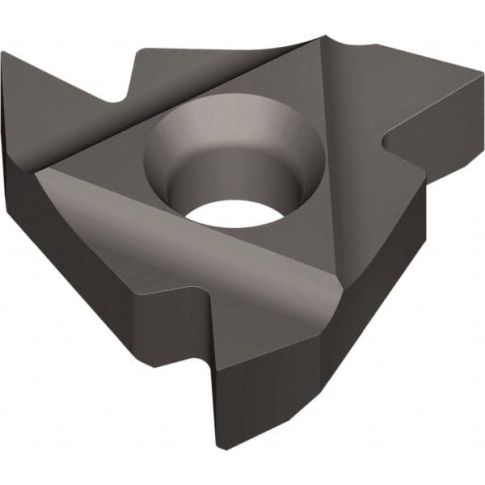

Laydown Threading Insert: 3EL18UN VTX, Solid Carbide MPN:50801
Laydown Threading Insert: 3EL18UN VTX, Solid Carbide
Laydown Threading Insert: 3EL18UN VTX, Solid Carbide TiAlN Finish, Left Hand External UN Thread, 18 TPI, 9.53mm Inscribed Circle, 3.6mm Thick
Product Information
- : 50801
- Coating Process: PVD
- Coating/Finish: TiAlN
- Included Angle: 60
- Inscribed Circle (Decimal Inch): 0.3750
- Inscribed Circle (Inch): 3/8
- Inscribed Circle (mm): 9.53
- Insert Hand: Left Hand
- Insert Material: Solid Carbide
- Insert Style: 3EL
- Manufacturer Grade: VTX
- Material Grade: Micrograin
- Number of Teeth Per Side: True
- Thickness (mm): 3.60
- Thread Standard: UN
- Thread Type: External
- Threads Per Inch: 18
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: IL, Israel
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.10
- Prohibited States: AK,HI,PR
Product info last updated on July 1, 2024 12:46am UTC
Category: Threading and Thread Mill Inserts
