BrakeMotor, 1hp, 1755RPM, 208-230/460VAC MPN:BMU1P2D
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7730789

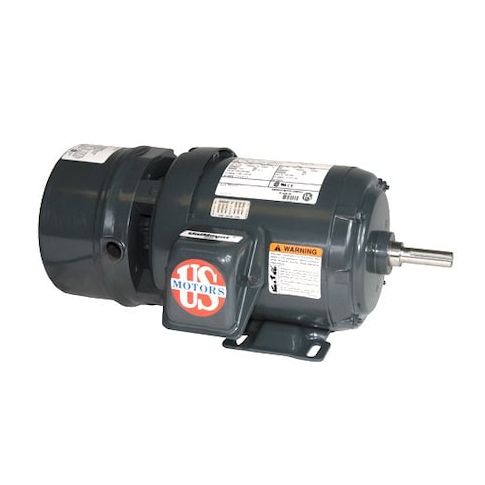

BrakeMotor, 1hp, 1755RPM, 208-230/460VAC
The BrakeMotor 1hp is a reliable and efficient three-phase motor designed for demanding applications. With a high 1755RPM speed and 1.25 service factor, it can handle continuous duty cycles in harsh environments. Suitable for use at 208V, this motor is ideal for industrial settings, such as manufacturing facilities, warehouses, and material handling equipment. Its totally enclosed fan-cooled design and rigid base mounting type ensure long-lasting performance and easy installation. With a lead time of 40 days, this motor is ready to meet the needs of your operation, providing a cost-effective solution for heavy-duty applications.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and efficient cooling system for the motor.
- Motor Shaft Rotation in both clockwise and counterclockwise directions allows for flexible installation and application.
- Three-Phase motor design enables efficient power transmission and reduces energy consumption.
Top product applications:
- Conveyor systems in manufacturing facilities
- Material handling equipment in warehouses
- Packaging machinery in food processing plants
Brake Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,755 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 3.1-3.2/1.6 A Full Load Amps, 143T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.50
- Package Width: 16.50
- Package Height: 15.00
- Package Weight: 42.05
Product info last updated on March 16, 2026 4:52pm UTC
Category: Motors
